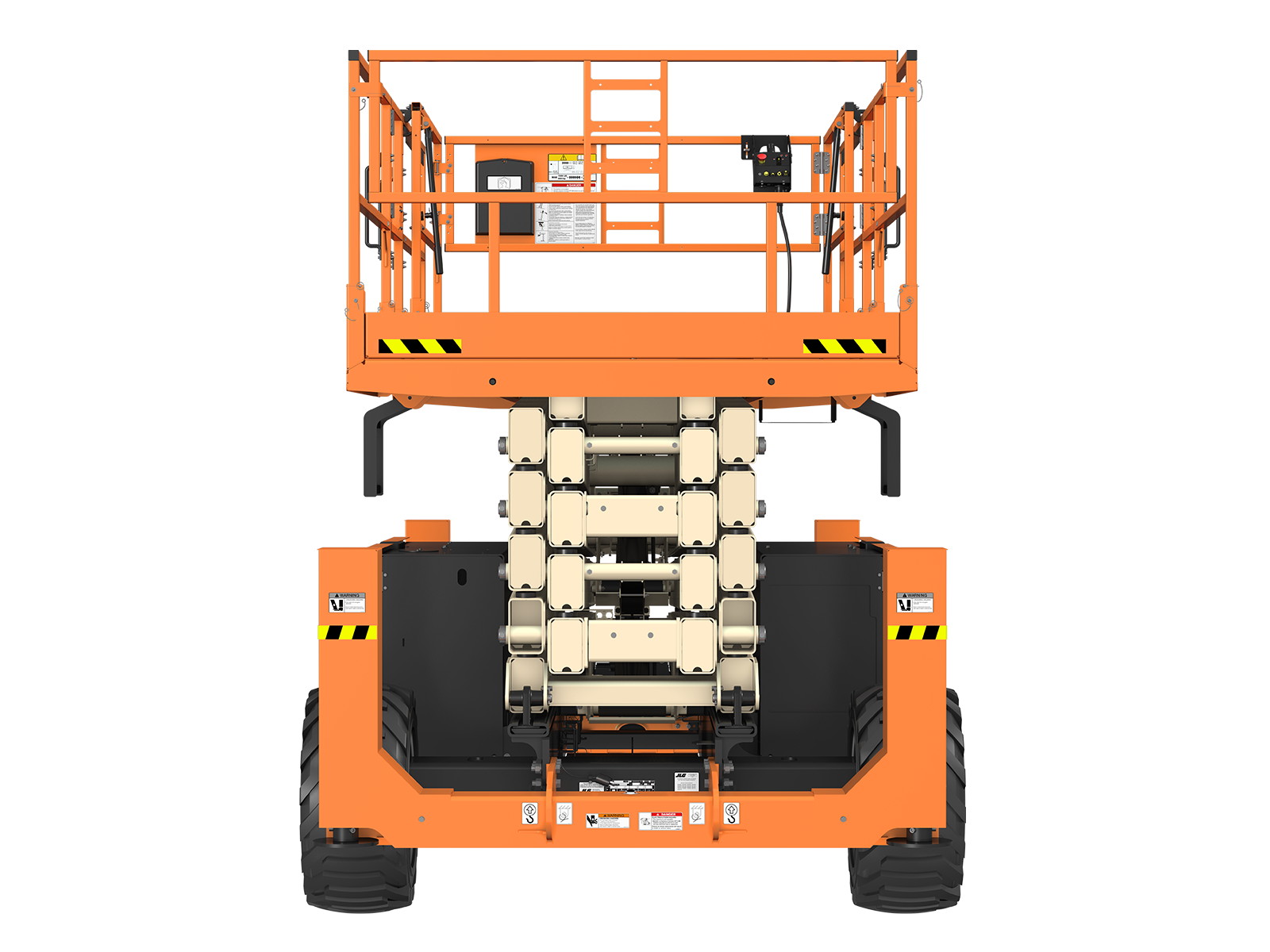

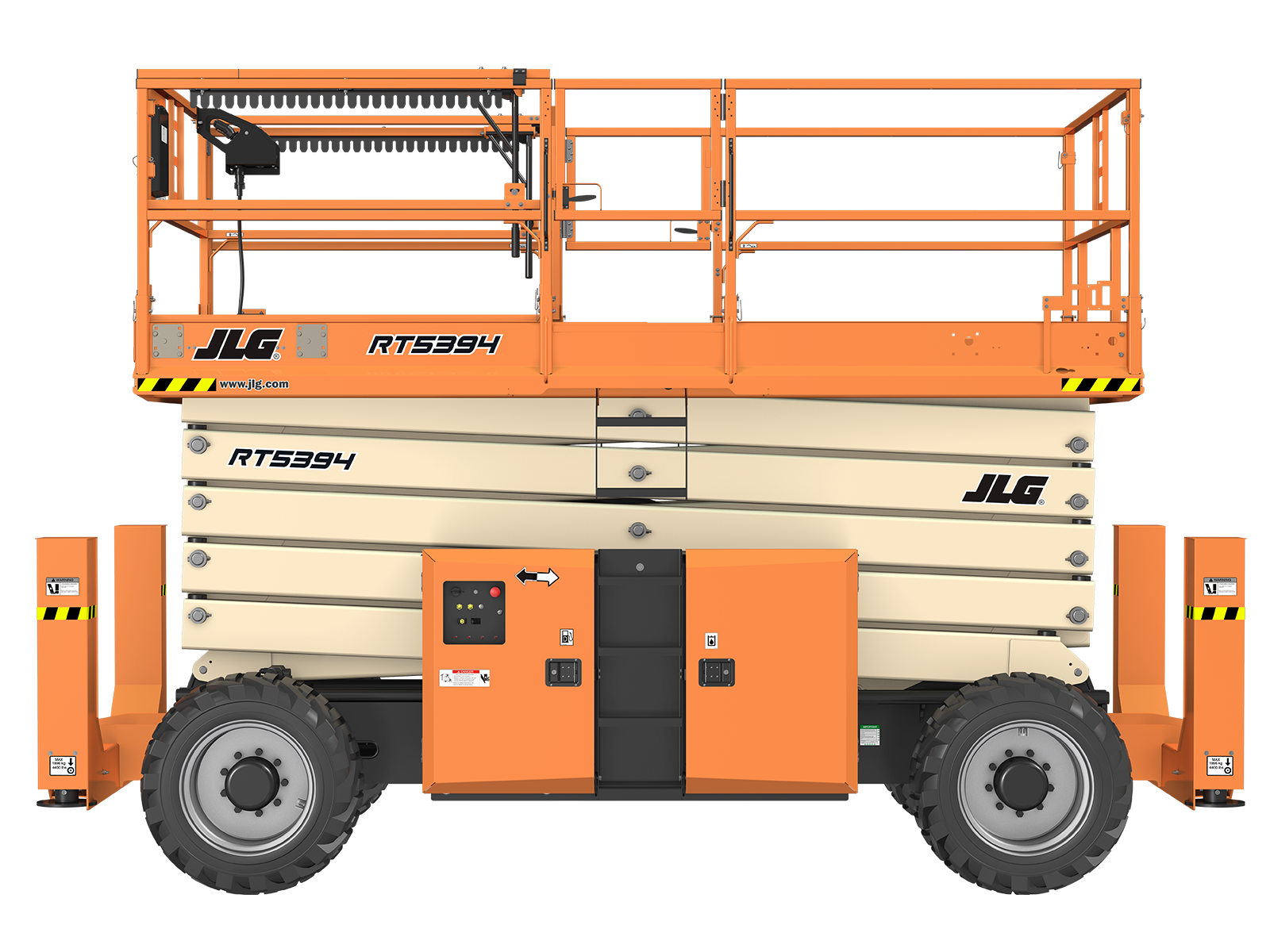

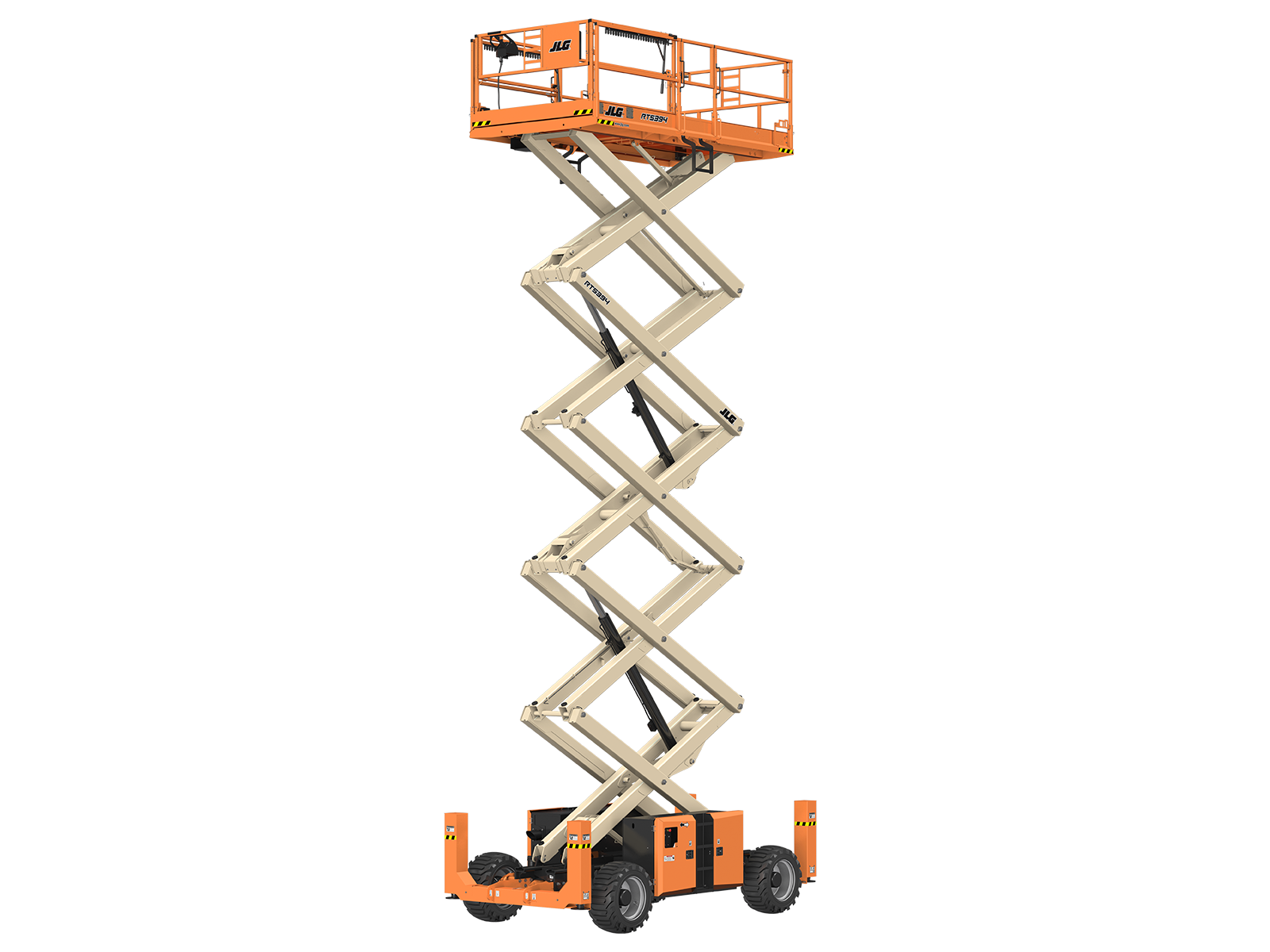

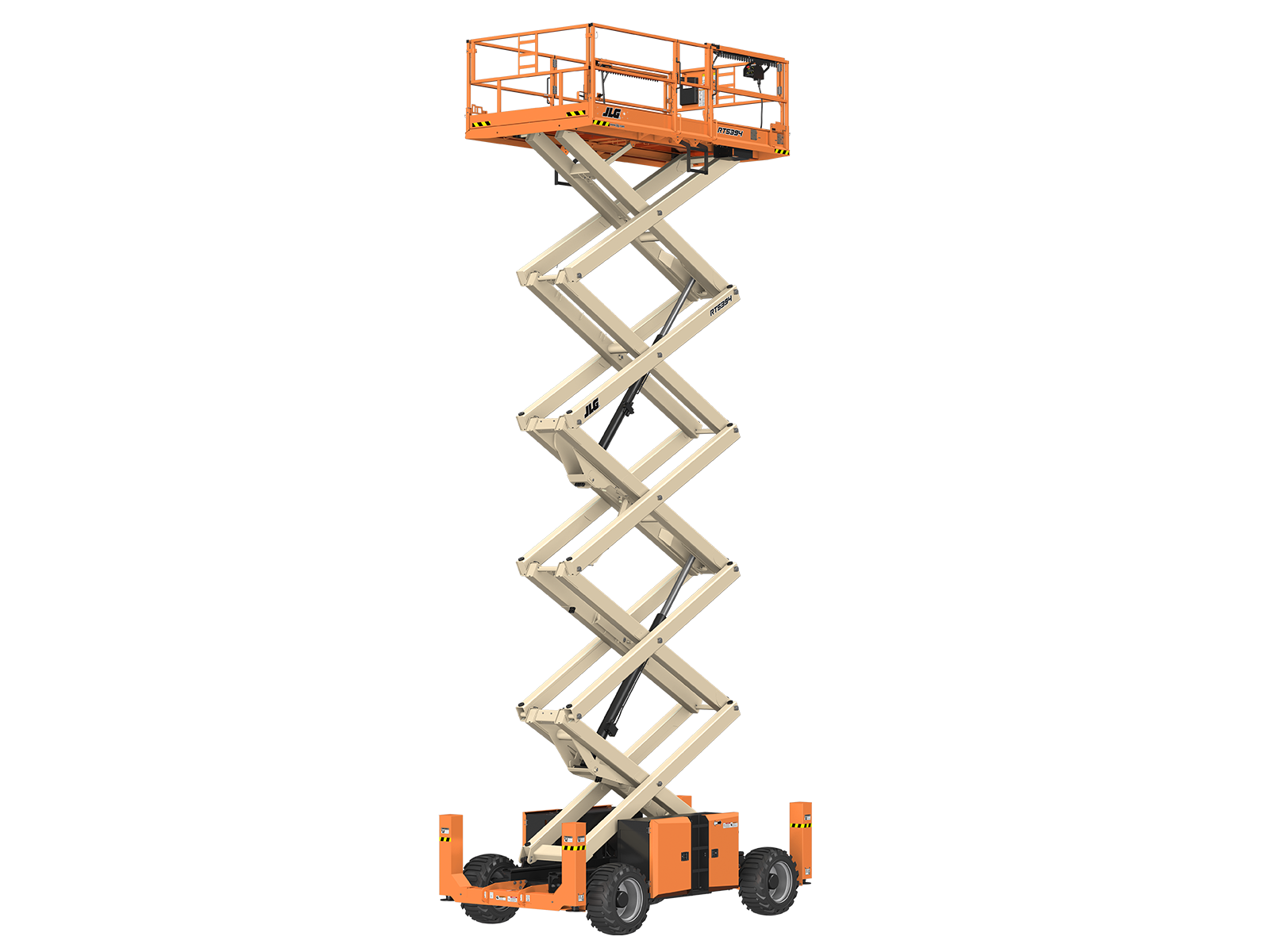

JLG RT Series Scissor Lift | RT5394

Our family of JLG® engine powered rough terrain scissors offers a wide range of models.Choose from four, 69 in wide machines that range in platform heights from 26 ft to 47 ft or from three 94 in wide machines that range in platform heights from 33 ft to 53 ft. Most models are capable of driving at full height, ensuring this line provides the broadest range of machines to handle any application.

Platform Height 53 ft / 16.15 m
Platform Capacity 1500 lb / 680.39 kg
Machine Width 7 ft 7 in. / 2.31 m
Drive Speed Platform Lowered: 3.5 mph / 5.63 km/h
  • Optimized power train: Allows for greater fuel efficiency
  • Standard 4 ft deck extension: Provides more space for people and materials; makes this model the biggest scissor lift JLG offers
  • Standard oscillating axle: Enhances terrainability across uneven surfaces while maintaining stability
  • The RT5394 is the new model designation of the previous 530LRT model
  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ConnectivityHardware
Machine Height 10 ft 1 in. / 3.07 m
Machine Height - Rails Folded 7 ft 9 in. / 2.36 m
Machine Length 17 ft / 5.18 m
Machine Width 7 ft 7 in. / 2.31 m
Platform Dimension A 5 ft 11 in. / 1.79 m
Platform Dimension B 12 ft 6 in. / 3.8 m
Platform Extension Length 4 ft / 1.22 m
Platform Height - Lowered 7 ft / 2.13 m
Platform Railing Height 3 ft 8 in. / 1.1 m
Tire Size 12 x 16.5 FF
Wheelbase 9 ft 9 in. / 2.97 m
