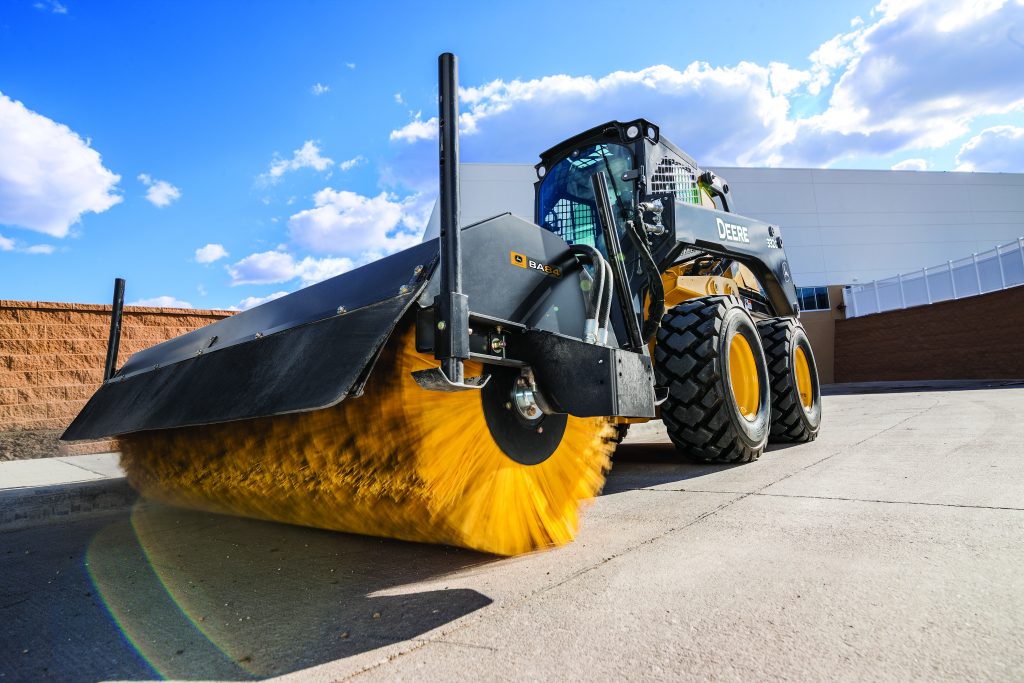

All John Deere angle broom attachments for skid steers and compact track loaders feature 50/50 poly wire brush segments. Optional all-polypropylene brush segments are available. Broom bristle replacement is neat and easy. Angle brooms feature a standard hydraulic-angling range of 30 deg. to right or left. Although angle broom attachments are optimized to work with Deere loaders, they’re also compatible with most competitive models.
Model | Sweeping Width | Overall Length (angled at 30 degrees) | Weight |
BA72C Angle Broom | 830 mm (72 in.) | 2230 mm (88 in.) | 410 kg (910 lb.) |
BA84C Angle Broom | 2130 mm (84 in.) | 2490 mm (98 in.) | 440 kg (960 lb. |
BA96C Angle Broom | 2440 mm (96 in.) | 2760 mm (109 in.) | 460 kg (1,010 lb.) |
All John Deere pick-up brooms for skid steers, compact track loaders, and compact wheel loaders feature 50/50 poly wire brush segments. Optional all-polypropylene brush segments are available. Broom bristle replacement is neat and easy. Although our pick-up broom attachments are optimized to work with Deere loaders, they’re also compatible with most competitive models.
Model | Sweeping Width | Hopper Capacity | Weight |
BP72C Pick-Up Broom | 1830 mm (72 in.) | 0.5 m3 (18 cu. ft.) | 580 kg (1,275 lb.) |
BP84C Pick-Up Broom | 2130 mm (84 in.) | 0.6 m3 (21 cu. ft.) | 640 kg (1,400 lb.) |
BR60C Pick-Up Broom | 1520 mm (60 in.) | 0.4 m3 (14 cu. ft.) | 400 kg (880 lb.) |
BR72C Pick-Up Broom | 1830 mm (72 in.) | 0.5 m3 (17 cu. ft.) | 440 kg (970 lb.) |
BR84C Pick-Up Broom | 2130 mm (84 in.) | 0.6 m3 (20 cu. ft.) | 500 kg (1,090 lb.) |
