John Deere hammers are the fastest hydraulic hammers on the market, with 30-percent fewer parts than either competitive or previous models, for simplified maintenance. Redesigned to provide two to three times more blows per minute (BPM) than previous models, for increased efficiency. Exclusive tool retention enables quick installation and removal using only one small screwdriver. Like all John Deere attachments, these hydraulic hammers are optimized to work with Deere skid steers, compact track loaders, and compact excavators. They’re also compatible with most competitive models.
Easily get into narrow spaces by utilizing these hammers’ compact design. Slim profiles also increases the operator’s visibility to the surrounding area. With only two moving parts and few seals, this modern modular design allows hammers to be easily serviced in the field with no special tools. Exclusive tool retention enables quick installation and removal using only one small screwdriver. For even more simplified maintenance, there are 30-percent fewer parts than competitive or previous models.
Model | Weight | Operating Pressure | Impact Rate |
HH20C Hammer | 150 kg (270 lbs) | 90–150 bar (1,305–2,175 psi) | 800–3,000 BPM |
HH40C Hammer | 190 kg (420 lbs) | 100–170 bar (1,450–2,465 psi) | 700–2,600 BPM |
HH60C Hammer | 228 kg (500 lbs) | 80–130 bar (1,160–1,885 psi) | 600–1,800 BPM |
HH80C Hammer | 315 kg (690 lbs) | 90–140 bar (1,305–2,030 lb.) | 500–1,700 BPM |

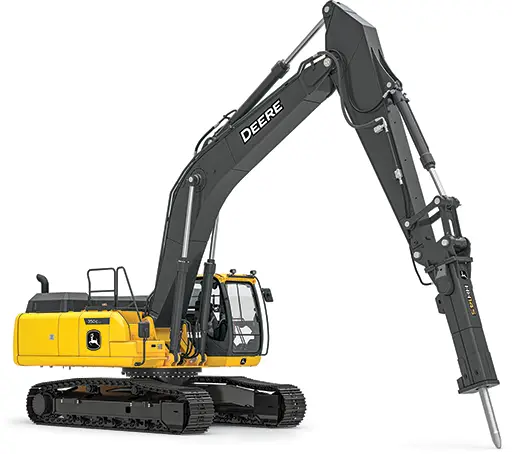

Whether you’re looking for an efficient alternative to a wrecking ball on a big demolition job or need to break up materials for landscaping, trenching, recycling, or other applications, John Deere excavator-compatible hydraulic hammers deliver breakthrough performance. Optimized for Deere excavators, they are also compatible with most competitive models.
Model | Weight | Operating Pressure | Impact Energy Class | Impact Rate |
HH90 Hammer | 500 kg (1,100 lbs) | 1,450–2,030 psi | 1,627 J (1,200 ft.-lb) | 500–1,700 blows/min |
HH115 Hammer | 1,100 kg (2,430 lbs) | 1,960–2,105 psi | 3,390 J (2,500 ft.-lb) | 540-920 blows/min |
HH125 Hammer | 1,360 kg (3,000 lbs) | 2,030-2,320 psi | 4,745 J (3,500 ft.-lb) | 430–790 blows/min |
HH135 Hammer | 1,670 kg (3,680 lbs) | 1,960–2,105 psi | 6,779 J (5,000 ft.-lb) | 450–750 blows/min |
HH145 Hammer | 2,350 kg (5,180 lbs) | 2,175–2,320 psi | 10,847 J (8,000 ft.-lb) | 370–630 blows/min long stroke / 460-740 blows/min short stroke |
