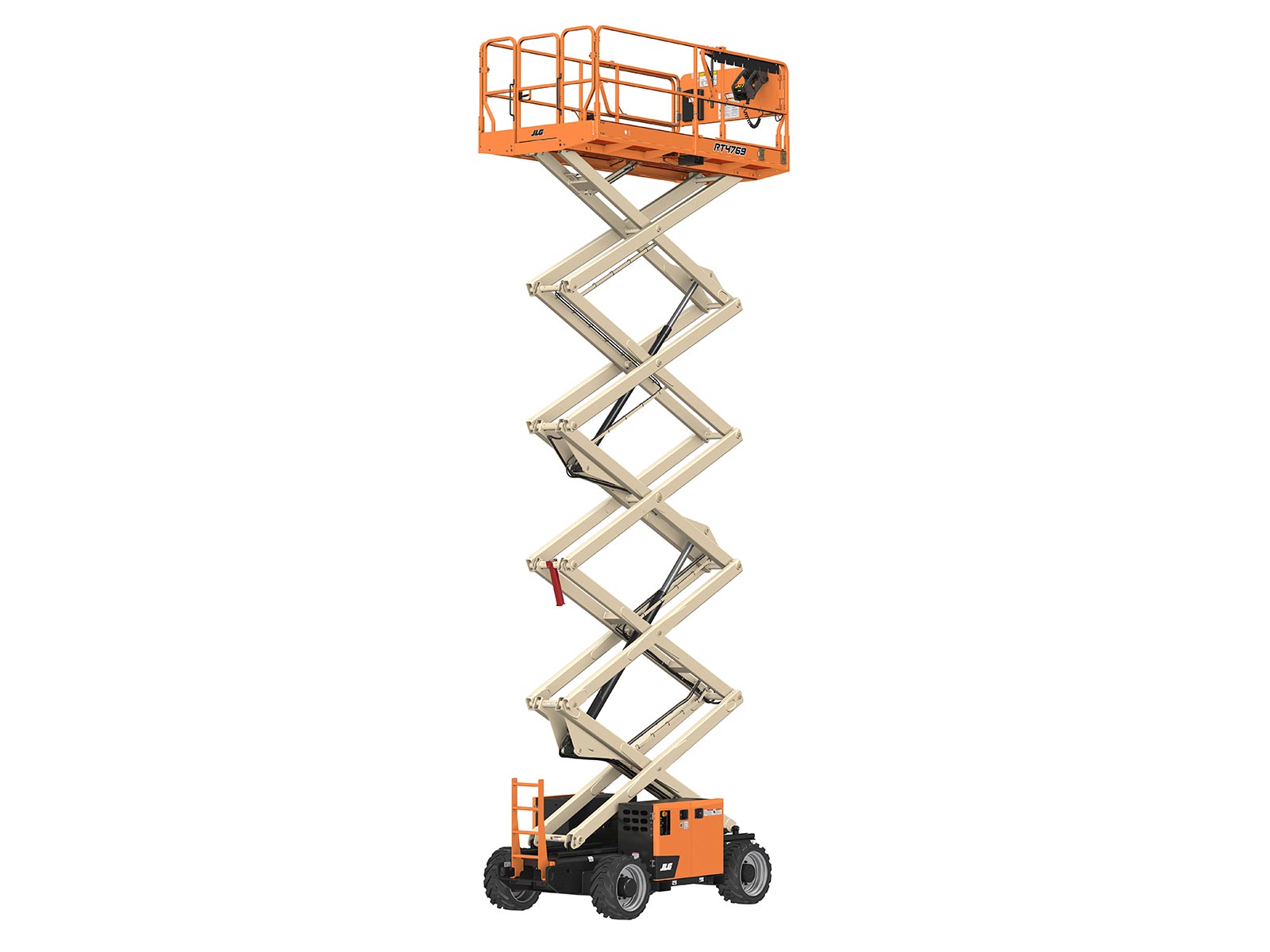

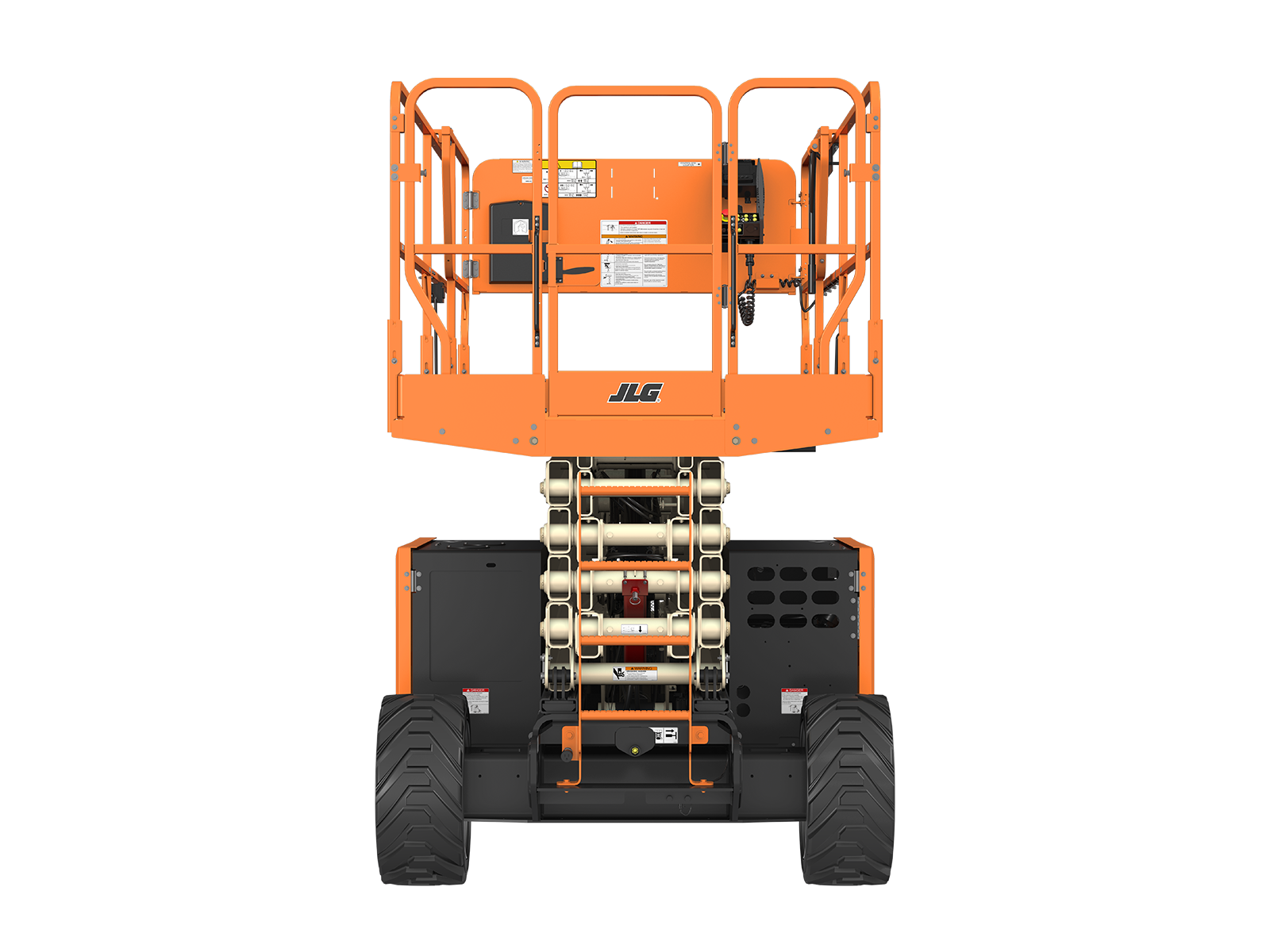

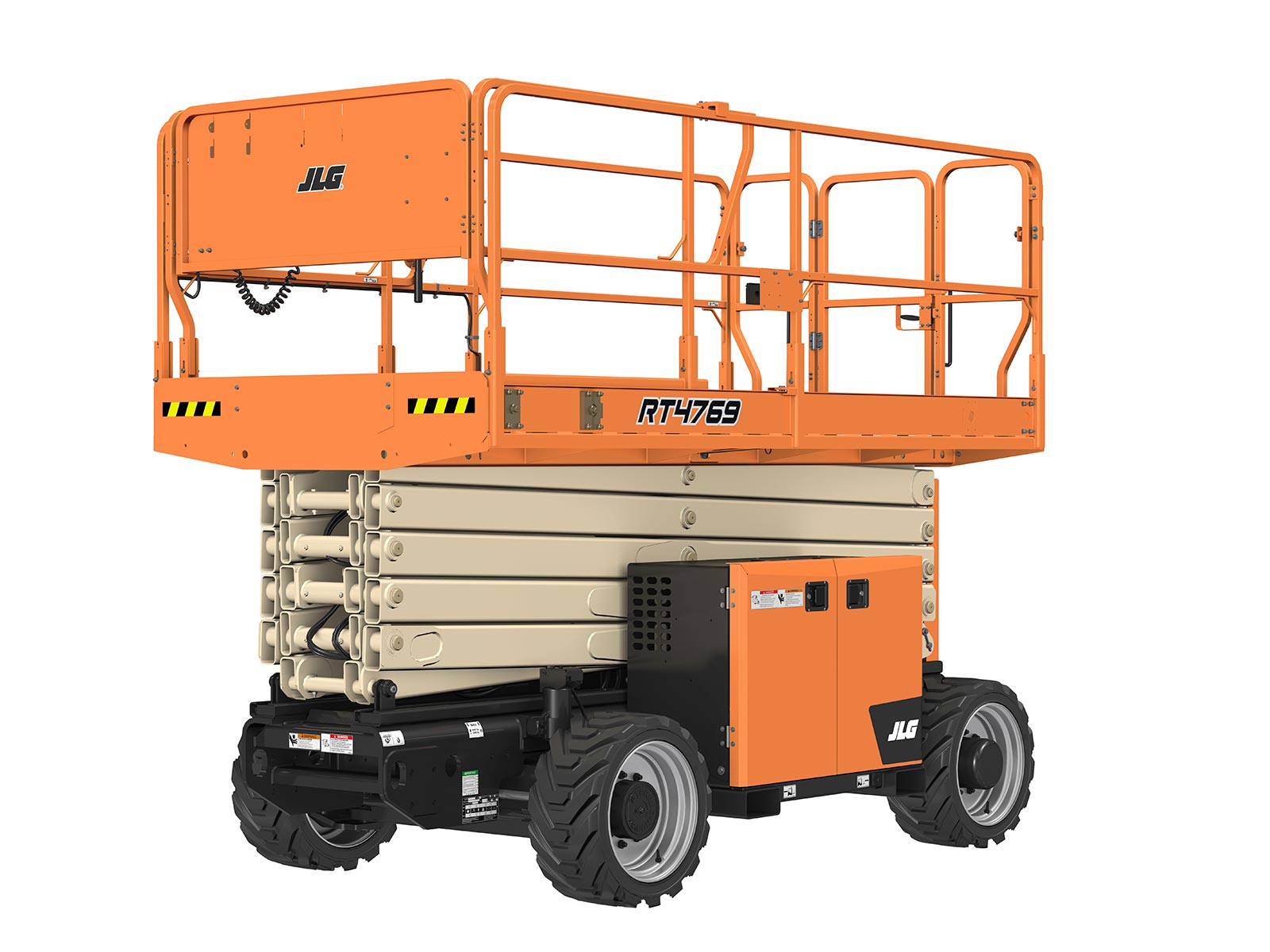

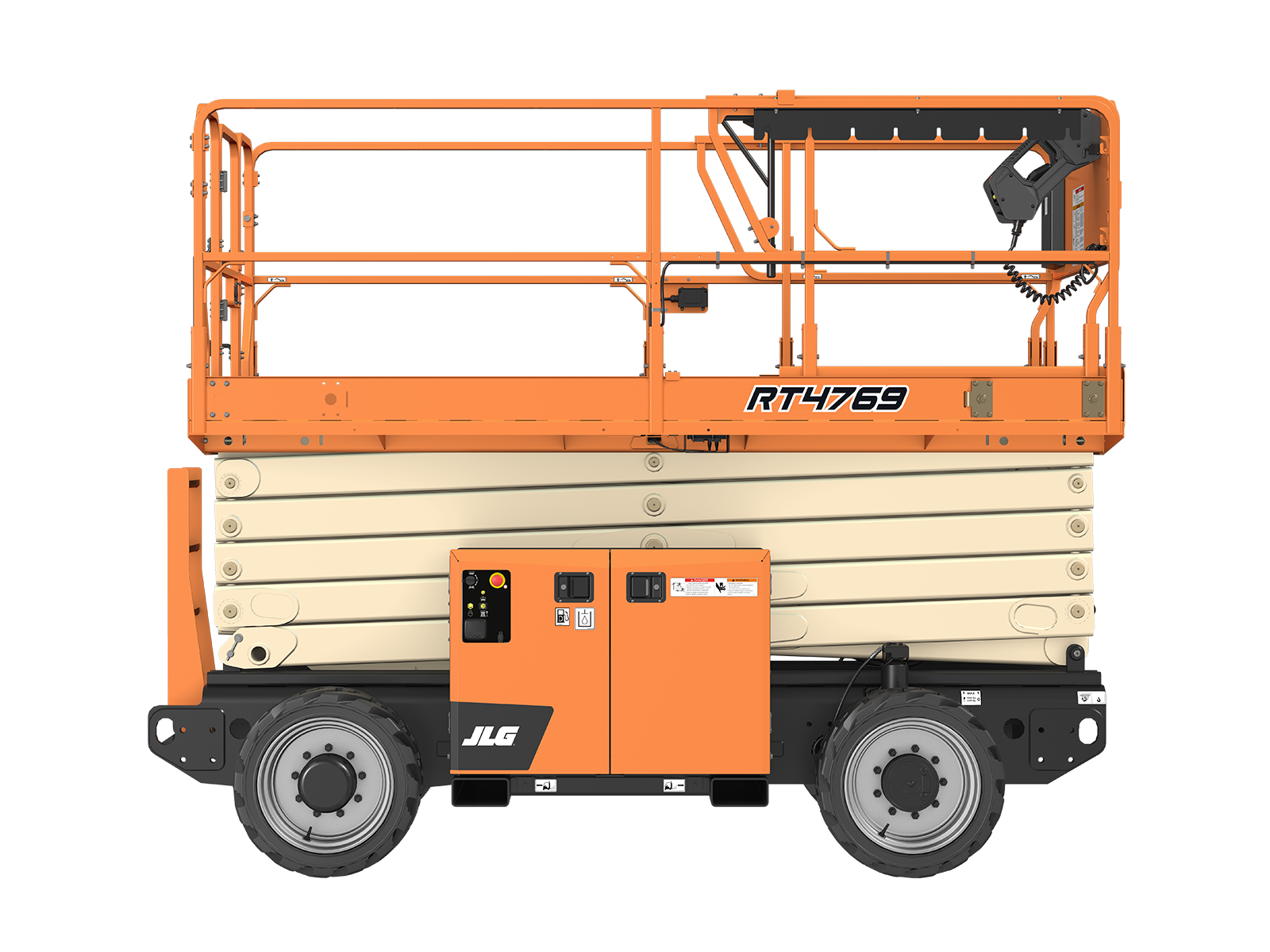

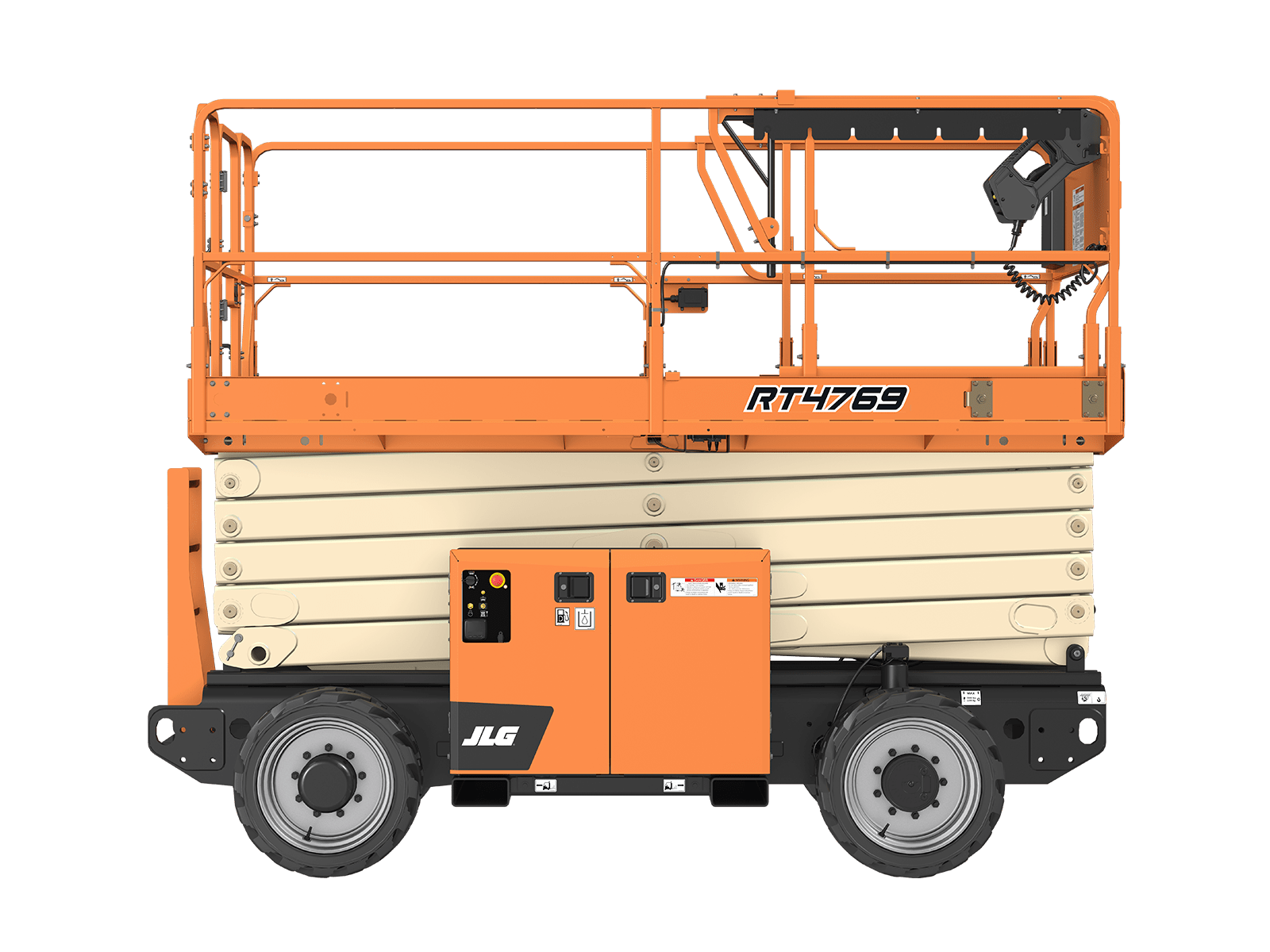

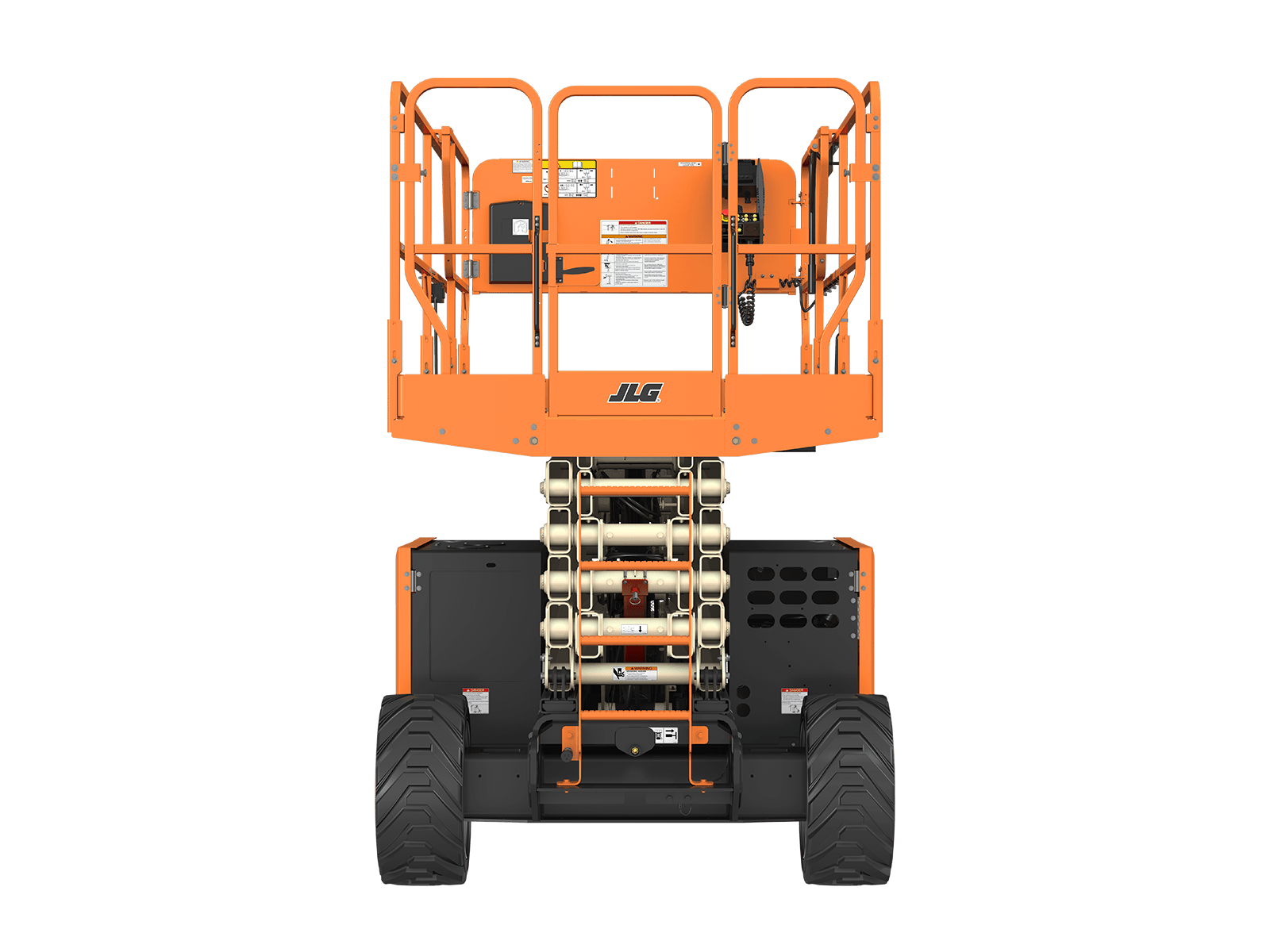

JLG RT Series Scissor Lift | RT4769

Our family of JLG® engine powered rough terrain scissors offers a wide range of models.Choose from four, 69 in wide machines that range in platform heights from 26 ft to 47 ft or from three 94 in wide machines that range in platform heights from 33 ft to 53 ft. Most models are capable of driving at full height, ensuring this line provides the broadest range of machines to handle any application.

Platform Height 47 ft / 14.33 m
Platform Capacity 800 lb / 362.87 kg
Machine Width 5 ft 9 in. / 1.76 m
Drive Speed Platform Lowered: 3 mph / 4.83 km/h
  • Reach More withOne Machine: This model is the tallest machine in its class, providing access to five-story heights
  • Limit Trips Up and Down: Engine powered rough terrain models offer drive capability at full height
  • Carry More to Height: The largest platform size in its class lets you bring more operators and tools to the job
Machine Height 9 ft 1 in. / 2.77 m
Machine Length 11 ft 7 in. / 3.53 m
Machine Width 5 ft 9 in. / 1.76 m
Platform Dimension A 10 ft 6 in. / 3.2 m
Platform Dimension B 4 ft 9 in. / 1.45 m
Platform Extension Length 3 ft 6 in. / 1.07 m
Platform Height - Lowered 5 ft 4 in. / 1.63 m
Platform Railing Height 3 ft 9 in. / 1.14 m
Tire Size 26 x 12 Foam Filled
Wheelbase 6 ft 9 in. / 2.07 m
