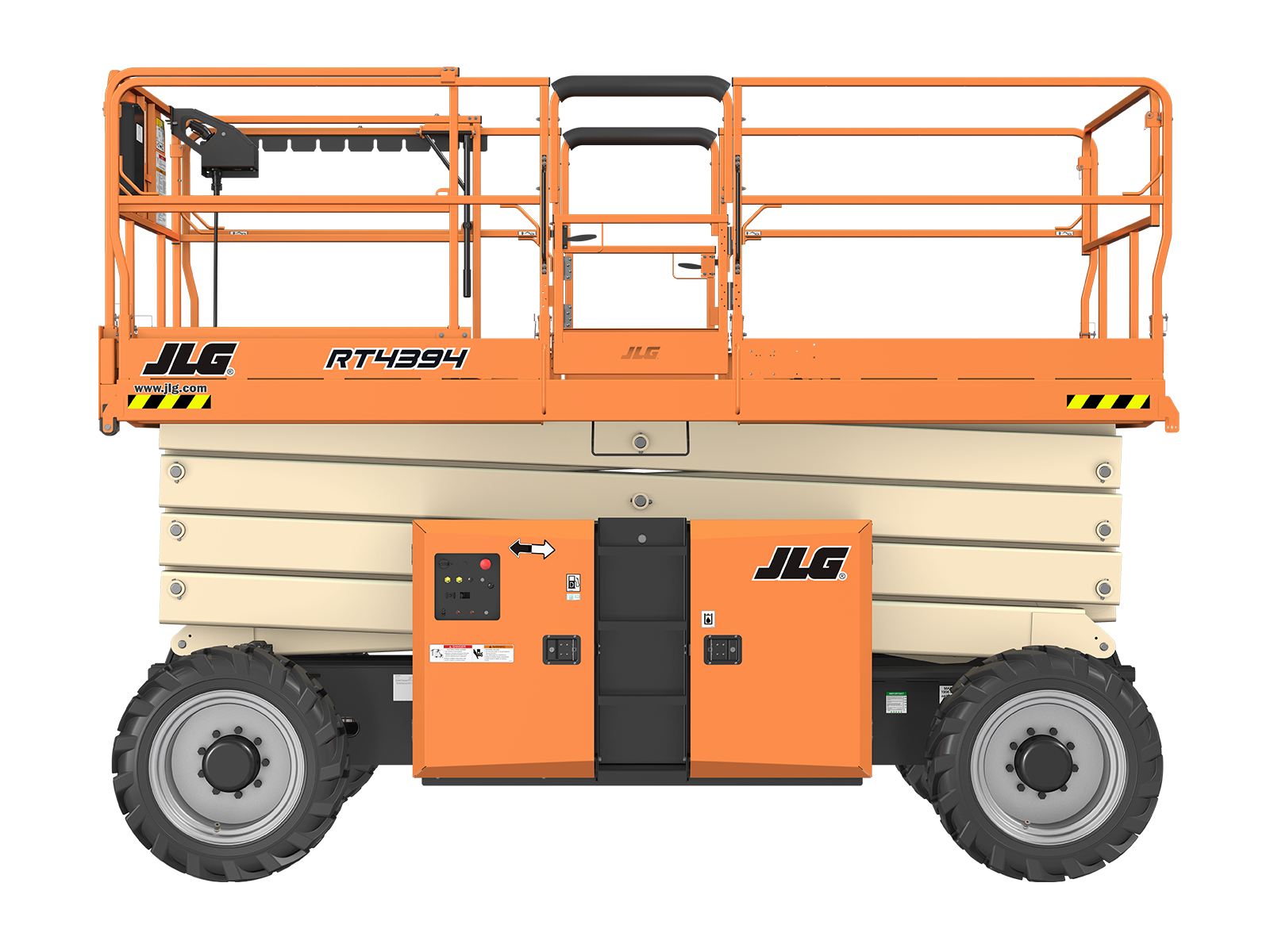

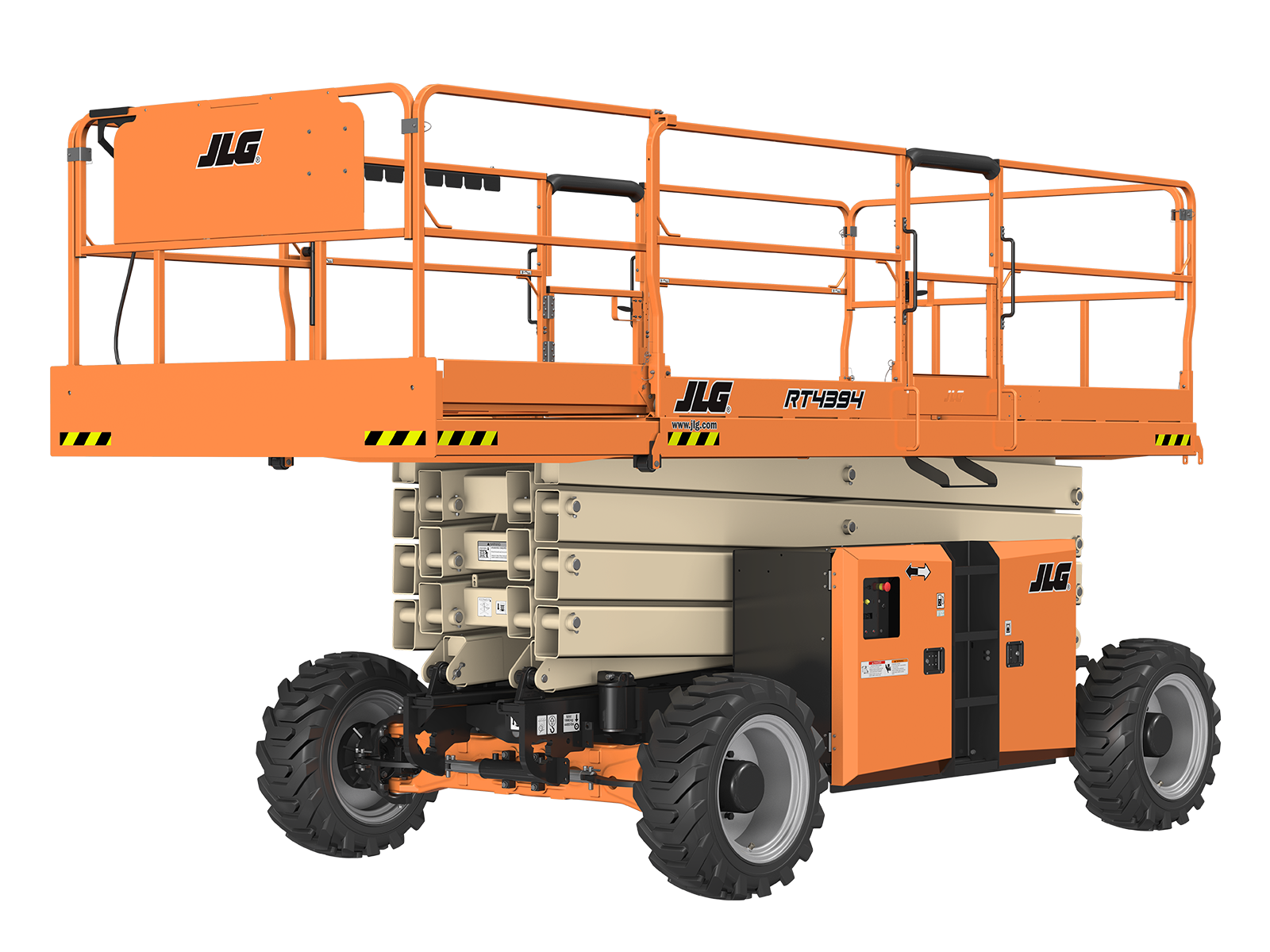

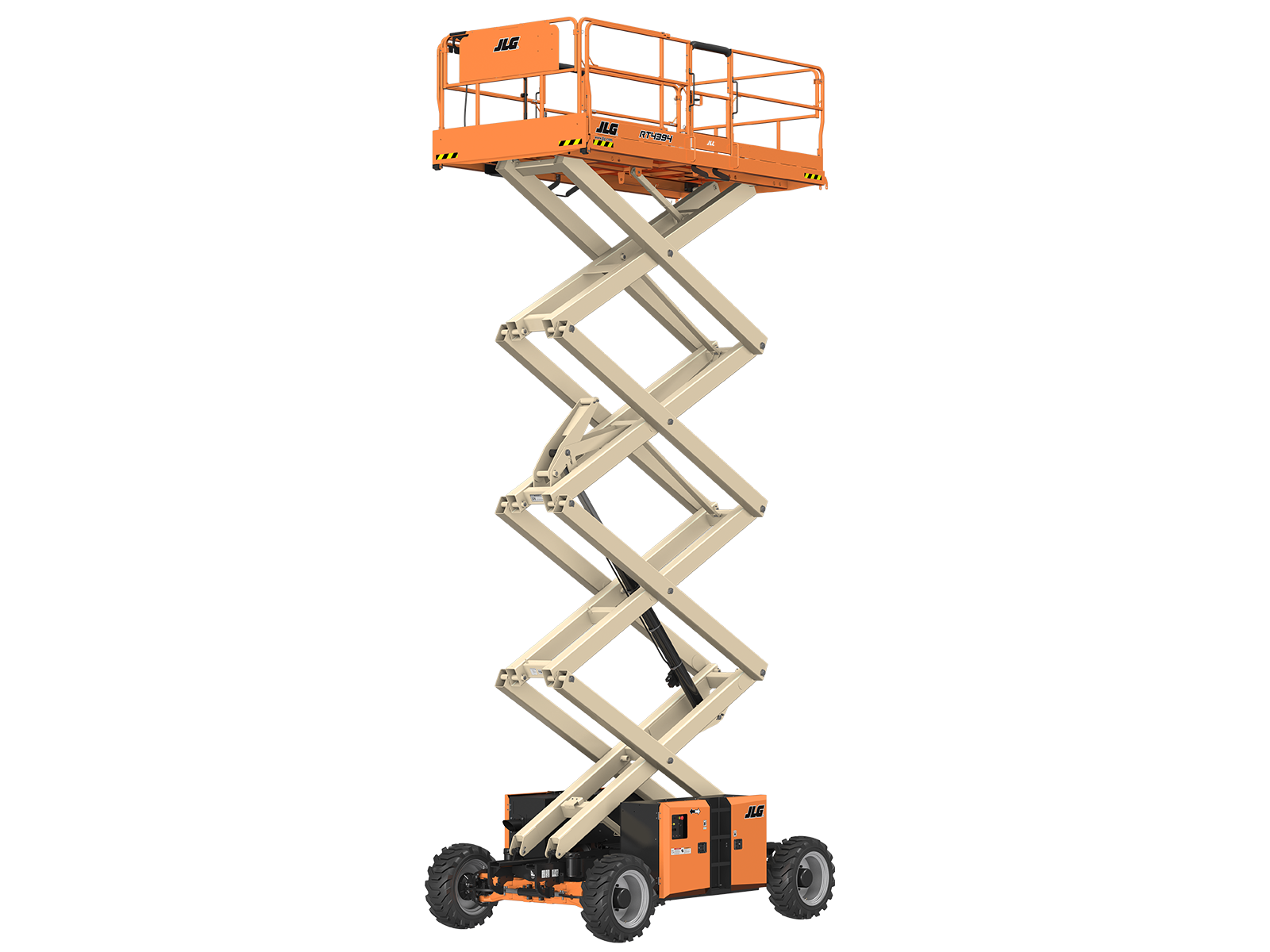

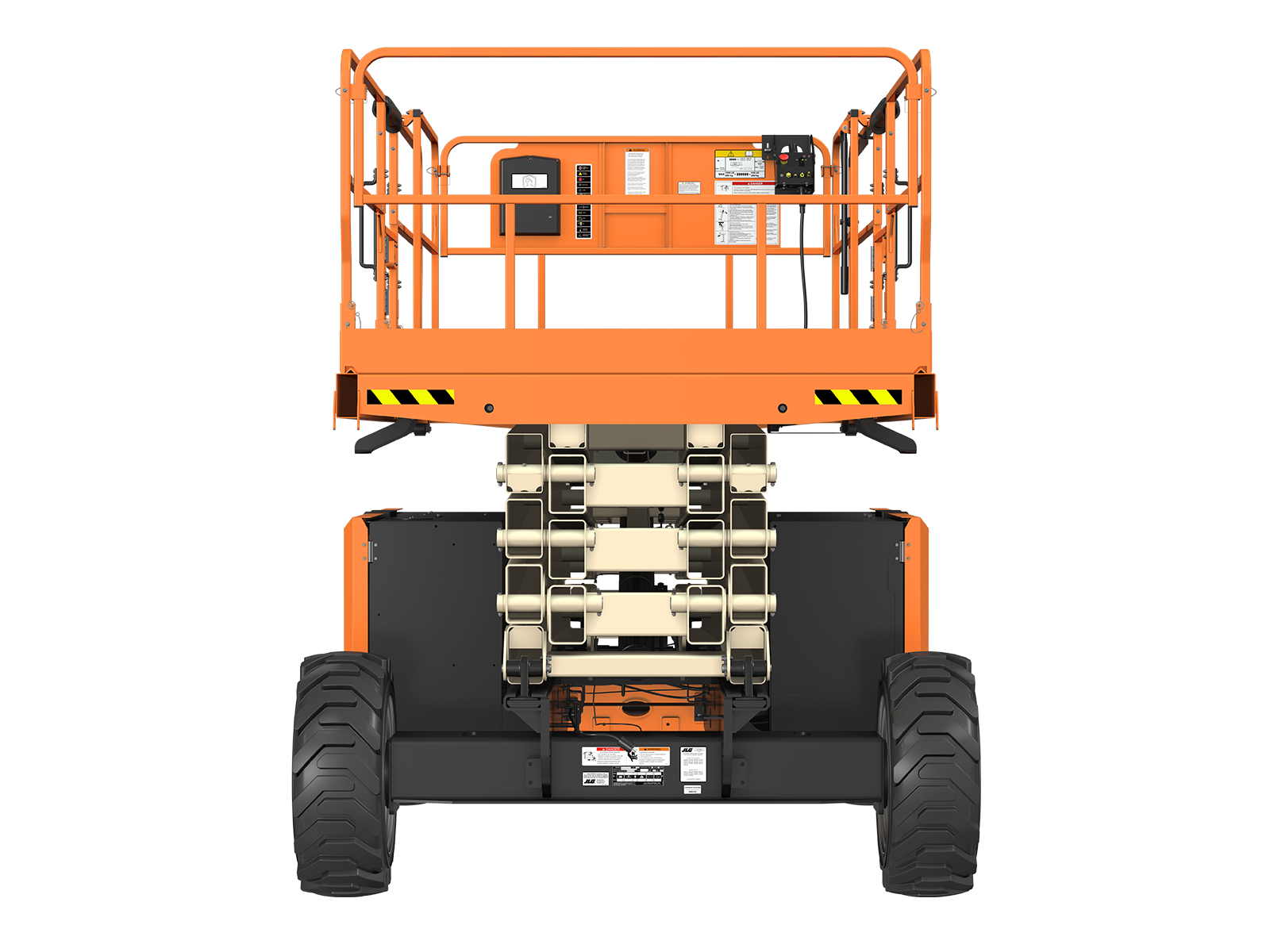

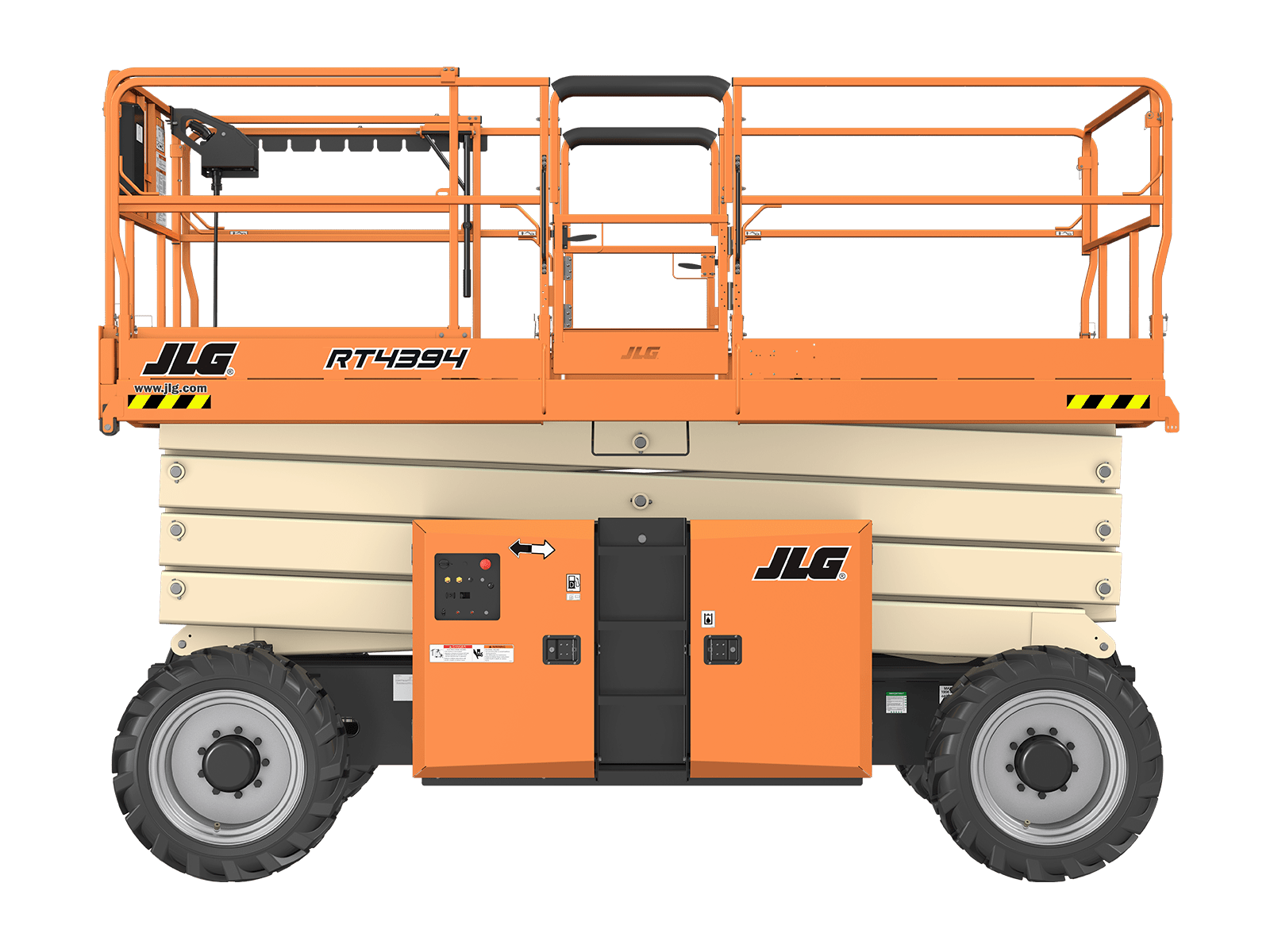

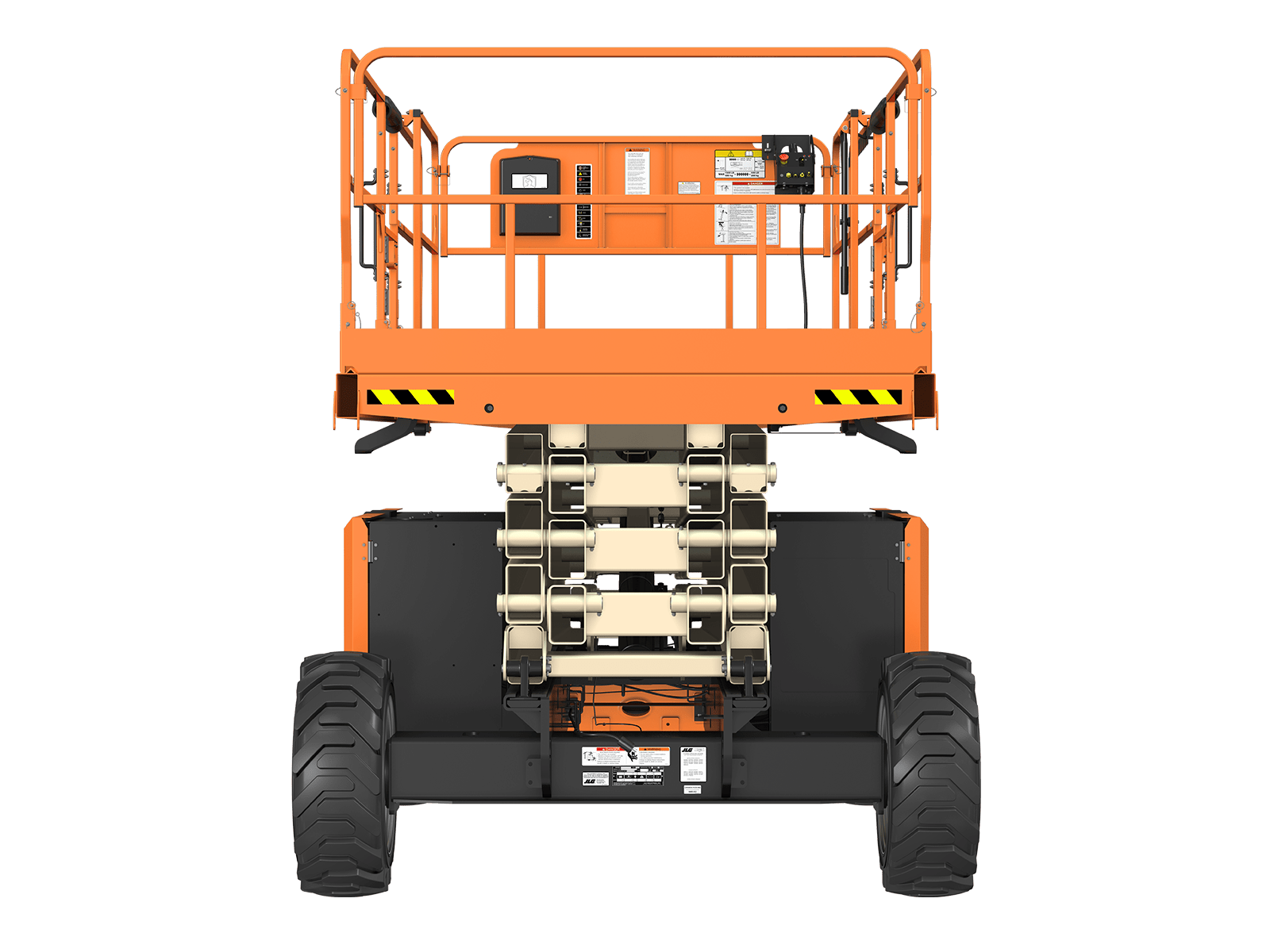

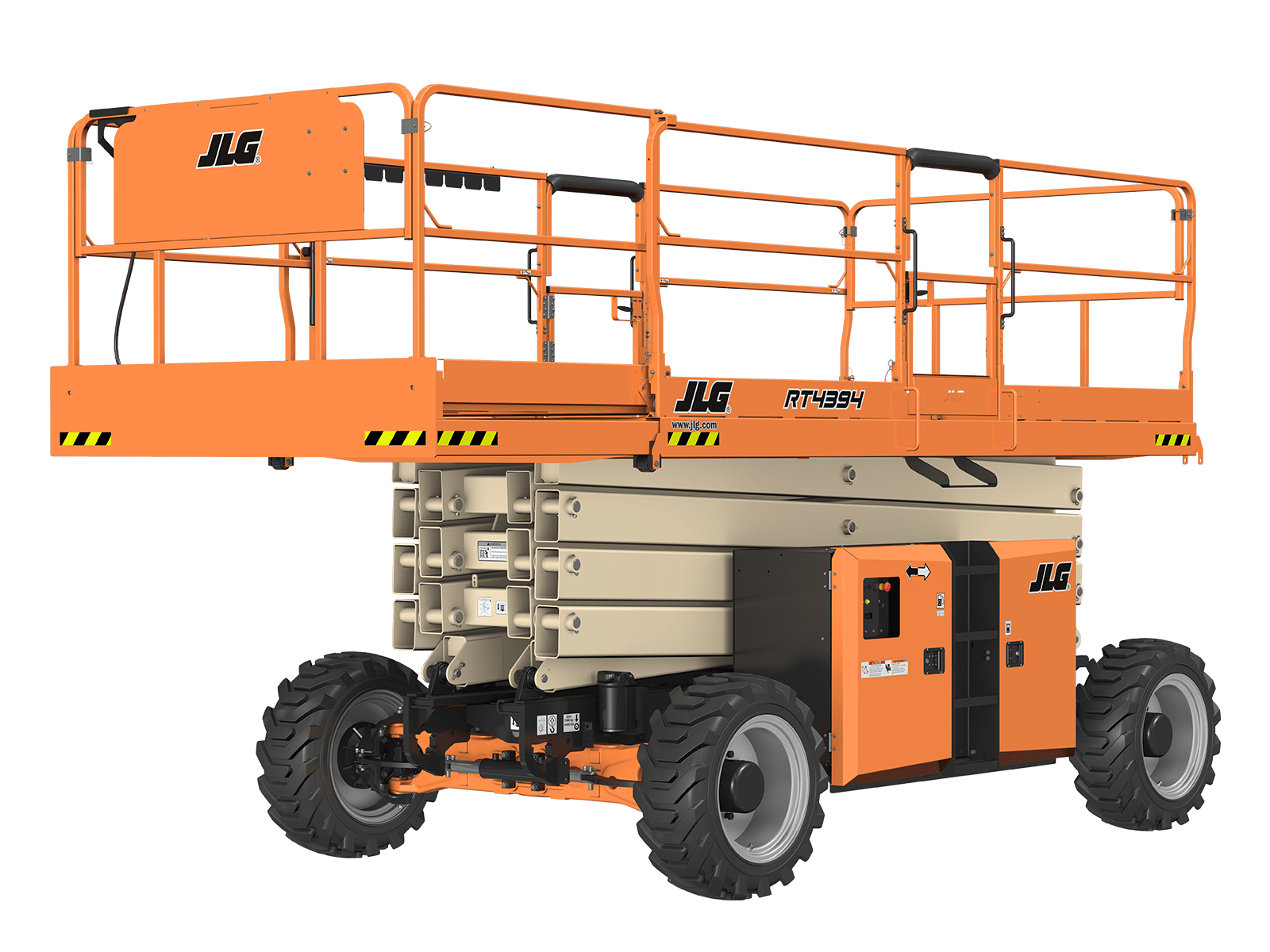

JLG RT Series Scissor Lift | RT4394

Our family of JLG® engine powered rough terrain scissors offers a wide range of models.Choose from four, 69 in wide machines that range in platform heights from 26 ft to 47 ft or from three 94 in wide machines that range in platform heights from 33 ft to 53 ft. Most models are capable of driving at full height, ensuring this line provides the broadest range of machines to handle any application.

Platform Height 43 ft / 13.11 m
Platform Capacity 1500 lb / 680.39 kg
Machine Width 7 ft 7 in. / 2.31 m
Drive Speed Platform Lowered: 3.5 mph / 5.63 km/h
  • Enhanced Stability on Uneven Surfaces-Standard oscillating axle gives you better traction and grade climbing ability
  • Smoother Extension Deployment-Platform is designed to shed debris and allows for smoother extension deployment
  • Better Serviceability-Fully accessible hydraulic and engine compartments are easier to service
  • The RT4394 is the new model designation of the previous 430LRT model
  • Standard LED Motion/Amber Beacon with ClearSky Smart Fleet™ConnectivityHardware
Machine Height 9 ft 10 in. / 3 m
Machine Height - Rails Folded 6 ft 10 in. / 2.08 m
Machine Length 12 ft 10 in. / 3.91 m
Machine Width 7 ft 7 in. / 2.31 m
Platform Dimension A 5 ft 11 in. / 1.79 m
Platform Dimension B 12 ft 6 in. / 3.8 m
Platform Extension Length 4 ft / 1.22 m
Platform Height - Lowered 6 ft 1 in. / 1.84 m
Platform Railing Height 3 ft 8 in. / 1.1 m
Tire Size 33 X 15.5 Superwide
Wheelbase 9 ft 9 in. / 2.97 m
