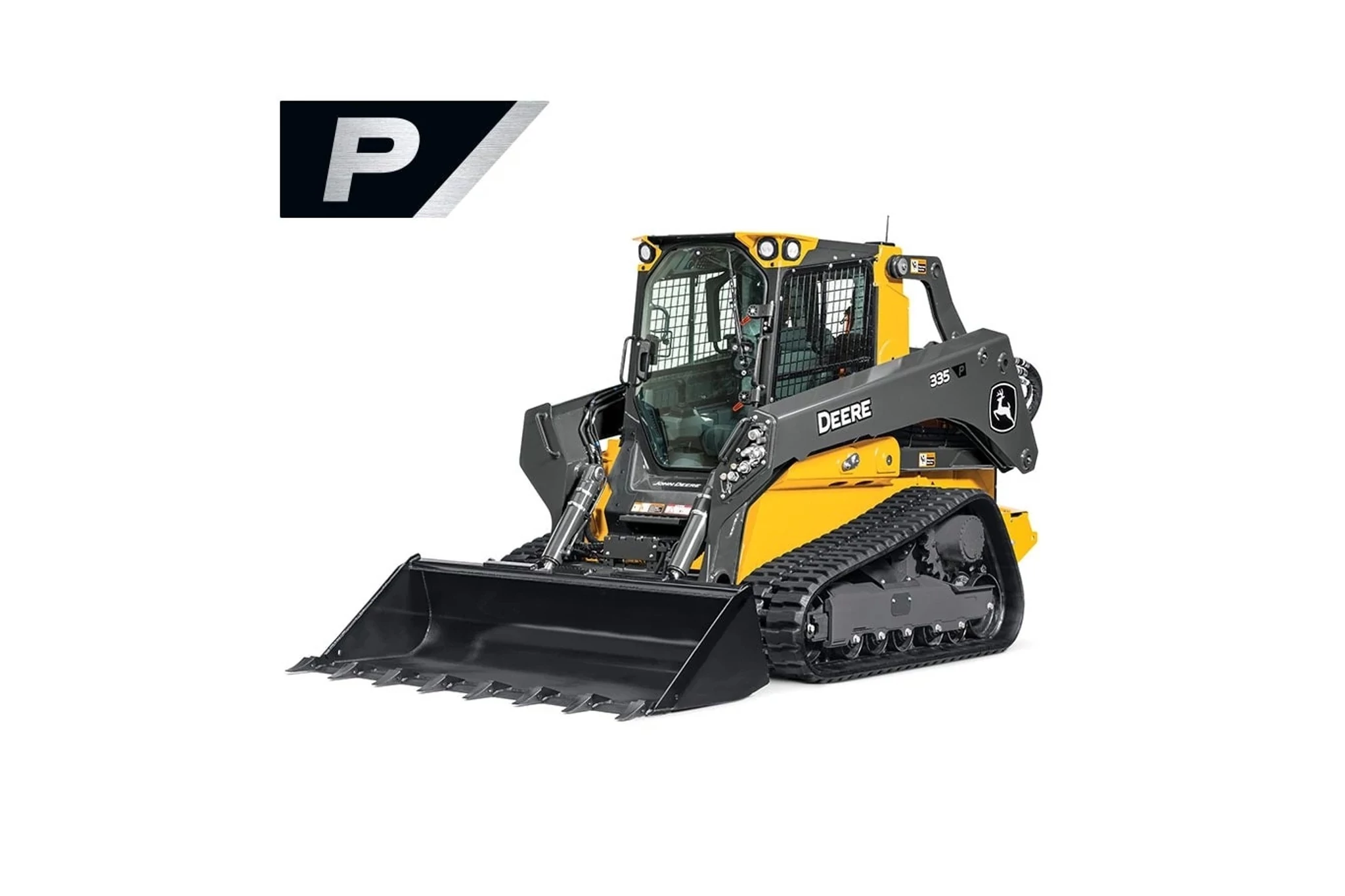

Studio image of a 335 P-Tier Compact Track Loader

335 P-Tier

The John Deere 335 P‑Tier Compact Track Loader delivers maximum power, advanced grade‑management technology, and premium operator comfort, built for high‑production work where precision and performance matter most.

Key Features:
  • Gross Horsepower: 118 hp (88 kW)
  • Net Horsepower: 114.7 hp (85.5 kW)
  • Rated Operating Capacity: 4,025 lb. (1,827 kg) With 1 Counterweight
  • Operating Weight: 12,300 lb. (5,584 kg) / 13,542 lb. (6,148 kg) With SG96 Dozer Blade
Premium Cab, Advanced Hydraulics, and Attachment Versatility
Side right view of a 335 P-Tier compact track loader handling a tree with an MB60 material boom

A completely redesigned, sealed, and pressurized cab delivers a quieter, cleaner, and more comfortable operator environment, with features such as a touchscreen display, hands‑free Bluetooth calling, and ergonomic electrohydraulic controls. High‑flow hydraulics and compatibility with over 100 John Deere attachments allow the 335 P‑Tier to take on everything from grading and material handling to mulching and land clearing—making it one of the most versatile CTLs in the lineup.

Maximum Power and Lift for High‑Production Work

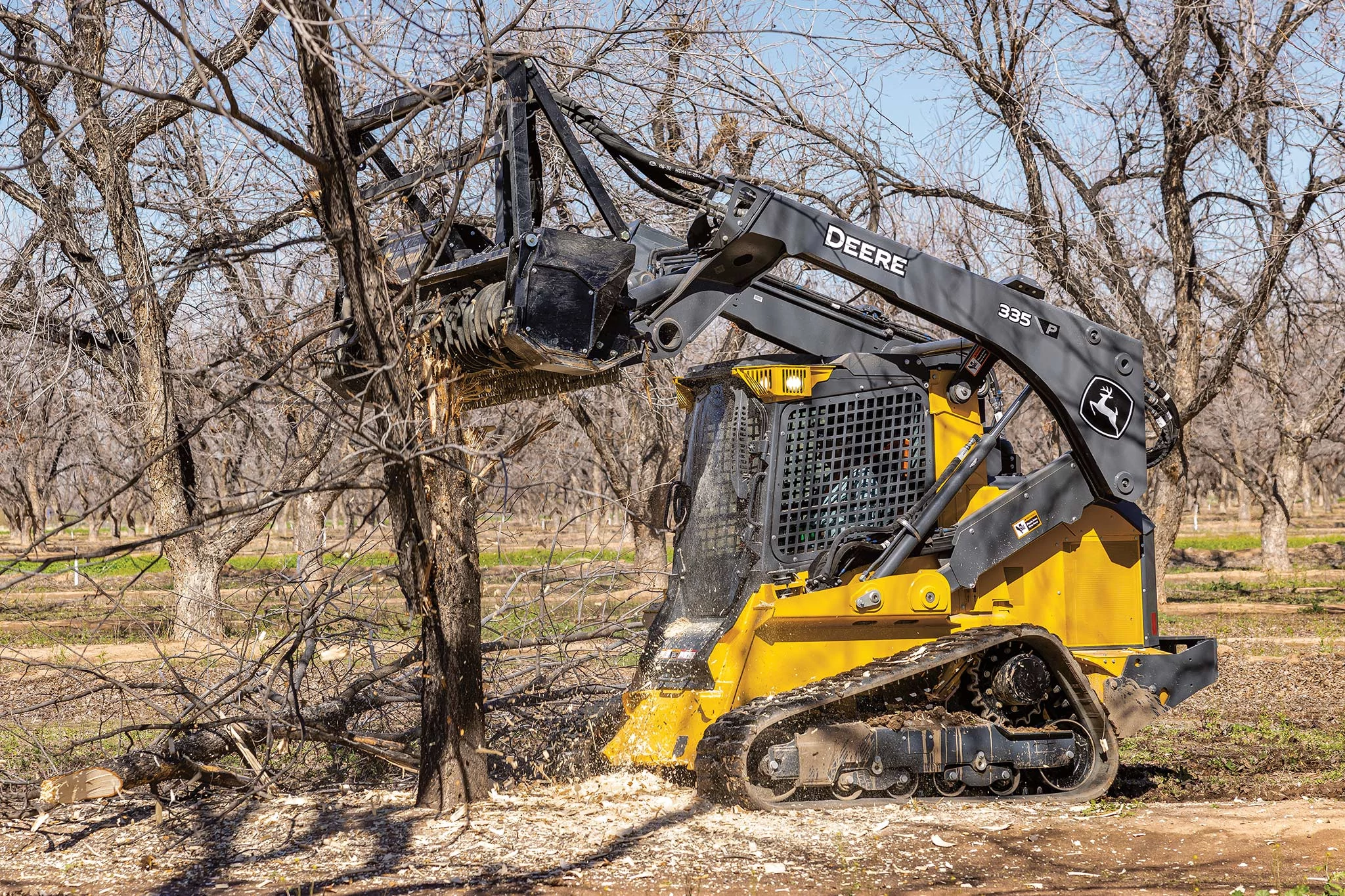

335 P-Tier compact track loader using a mulching head attachment to clear brush.

With 118 gross horsepower and a high rated operating capacity, the 335 P‑Tier is engineered to handle demanding applications such as site development, roadbuilding, and vegetation management. Its vertical‑lift boom design delivers excellent reach and stability for truck loading and material placement, while the tracked undercarriage provides traction and control on soft or uneven ground.

SmartGradeâ„¢ Technology for Precision and Efficiency

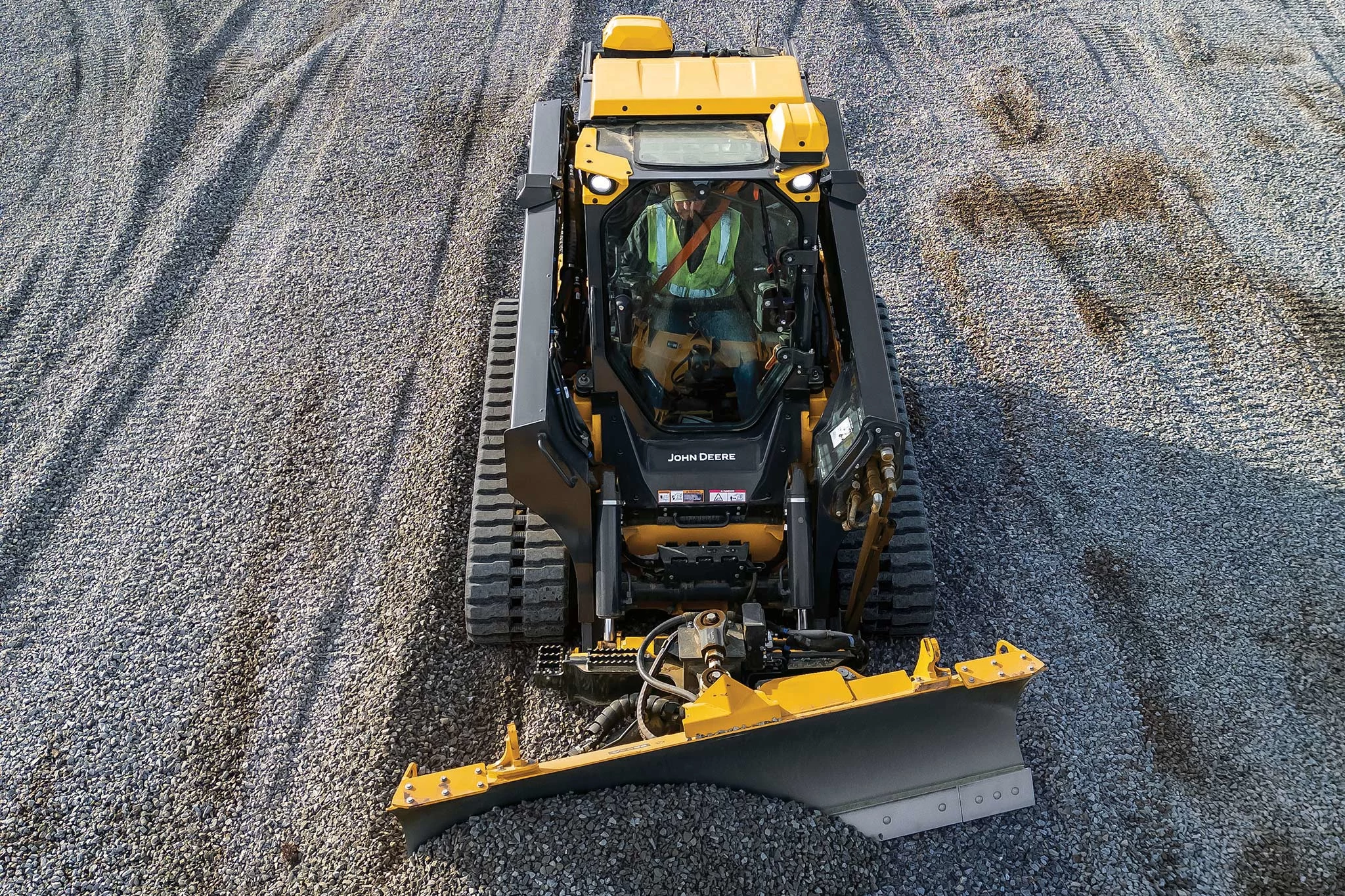

Side left aerial view of a yellow and black 335 P-Tier compact track loader on a gravel and dirt jobsite

The 335 P‑Tier can be equipped with John Deere SmartGrade™ technology, along with slope control and laser slope control options, helping operators grade faster and more accurately with fewer passes and less rework. By automating blade movement and maintaining consistent grade, SmartGrade improves productivity and makes it easier for operators of all experience levels to achieve quality results the first time.

Description: 335 P-Tier
Key Specs
ManufacturerYanmar®
Model4TNV94FHT
Displacement186.33 cu in.
Rated engine speed2500 rpm
Travel speed low5.5 mph
Travel speed high8.5 mph
Hydraulic horsepower standard flow (calculated)51.05 hp
Engine
ManufacturerYanmar®
Model4TNV94FHT
Non-road emission standardsFinal Tier 4
Engine cylinders4
Net power (SAE J1349, ISO 9249) at 2500 rpm114.66 hp
Rated gross power (ISO 14396) at 2500 rpm118 hp
Rated gross power (ISO 14396) at 2600 rpm118 hp
Peak torque at 1700 rpm291.34 lb-ft
Displacement186.33 cu in.
Rated engine speed2500 rpm
Torque rise percent at 1700 rpm39 %
AspirationTurbocharged, intercooled
Air cleaner typeDry dual element
Cooling
Fan drive typeVariable speed hydraulic drive
Powertrain
Pump typeAxial piston hydrostatic pump
Controls typeElectrohydraulic
Travel speed low5.5 mph
Travel speed high8.5 mph
Parking brake typeIntegral, automatic, spring applied, hydraulically released wet-disk brake
Undercarriage
Rubber tracks constructionNew-generation smooth-ride long-life rubber with steel inserts
Standard track width17.7 in.
Optional track width15.8 in.
Ground pressure standard track4.76 psi
Ground pressure optional track5.28 psi
Track rollers (per side)5 triple-flange smooth-ride, all-steel rollers
Track idlers (per side)2 double-flange smooth-ride, all-steel rollers
Bearings/seals (rollers/idlers) typeNot specified
Tractive effort11500 lbf
Hydraulics
Standard pump flow25 gpm
High flow option total pump flow44 gpm
System pressure at couplers3500 psiPerMin
Optional high pressure system pressure at couplers4000 psi
Hydraulic horsepower standard flow (calculated)51.05 hp
Hydraulic horsepower high flow/high pressure (calculated)102.68 hp
Cylinders
Cylinders typeJohn Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins
Electrical
Voltage12 V
Battery Capacity950 CCA
Alternator rating with A/C120 amp
Lighting optionsHalogen, Two (2) Front and One (1) Rear; (Optional): LED, Four (4) Front, and One (1) Rear
Operator Station
StructureROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot
Monitoring
Alternator, low voltageIndicator light
Auxiliary hydraulicsIndicator light
Battery voltageIndicator light, Digital
DiagnosticsDigital
Engine air filter restriction indicatorIndicator light
Engine coolant temperatureIndicator light, Gauge, Digital
Engine oil pressureIndicator light
Engine rpm indicatorDigital
Fuel gaugeGauge
Diesel exhaust fluid (DEF) level indicatorAudible warning, Gauge
HourmeterDigital
Hydraulic oil filter restrictionIndicator light
Hydraulic oil temperatureIndicator light, Gauge, Digital
Park brake engagedIndicator light
Hi-flow indicatorIndicator light
Warm-up indicatorIndicator light, Digital
Serviceability
Fuel tank36 gal.
Operating Weights
Machine configuration that will produce base machine weight (ISO 6016)Standard 17.7-in. (450 mm) Track
Standard track12320 lb.
Machine Dimensions
Length without bucket125 in.
Length without bucket10, 5 ft, in.
Length with foundry bucket151.2 in.
Length with foundry bucket12, 7 ft, in.
Width without bucket with 15.8-in. tracks78.86 in.
Width without bucket with 15.8-in. tracks6, 7 ft, in.
Width without bucket with 17.7-in. tracks80.7 in.
Width without bucket with 17.7-in. tracks6, 9 ft, in.
Height to top of rollover protective structure (ROPS)87.4 in.
Height to top of rollover protective structure (ROPS)7, 3 ft, in.
Height to hinge pin132 in.
Height to hinge pin11, 0 ft, in.
Dump height, foundry bucket106.08 in.
Dump height, foundry bucket8, 10 ft, in.
Dump reach, foundry bucket29 in.
Dump reach, foundry bucket2, 5 ft, in.
Dump reach, construction bucket, no edge36.2 in.
Dump reach, construction bucket, no edge3, 0 ft, in.
Ground clearance9.75 in.
Angle of departure degree24.7 degree (angle)
Front turn radius, foundry bucket86 in.
Front turn radius, foundry bucket7, 2 ft, in.
Dump angle (full lift height) degree48 degree (angle)
Bucket rollback (ground level) degree35 degree (angle)
Loader Performance
SAE rated operating capacity at 35% tipping load (construction bucket)4025 lb.
SAE rated operating capacity at 50% tipping load (construction bucket)4800 lb.
Boom breakout force with foundry bucket8500 lb.
Boom breakout force with construction bucket7800 lb.
Bucket breakout force with foundry bucket13800 lb.
