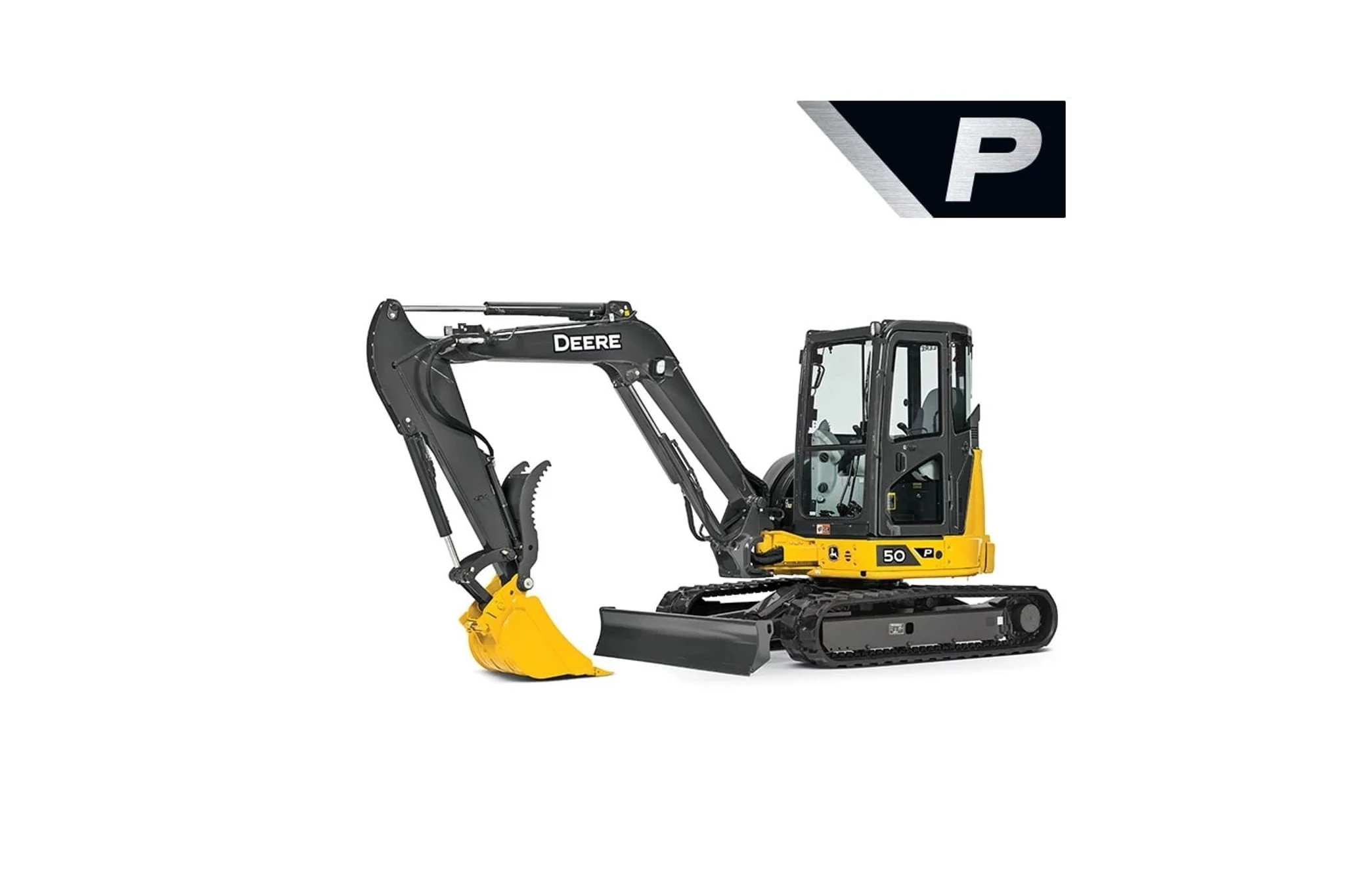

Studio image with a front left view of a 50 P-Tier Compact Excavator

50 P-Tier

The John Deere 50 P-Tier Compact Excavator offers precision and efficiency in any challenging worksite, delivering powerful performance and intuitive control for enhanced productivity in compact spaces.

Key Features:
  • Net Power: 35.9 hp (26.8 kW)
  • Max Digging Depth: 11 ft. 7 in. (3.53 m)
  • Operating Weight: 10,847 lb. (4,920 kg)
  • Max Reach: 19 ft. 7 in. (5.96 m)
Take on Bigger Compact Jobs with More Power
Tracked skid steer loader and compact excavator working together on a dirt hillside.

With 35.9 hp and increased digging capability, the 50 P‑Tier provides the extra strength needed for tougher trenching, material handling, and site prep while maintaining compact agility.

Work Efficiently in Tight and Urban Job Sites
Compact excavator operating on a rocky slope at a construction site, with the machine’s arm digging into the dirt and a large mound of earth rising behind it

A zero‑tail‑swing design allows operators to work close to structures, traffic, and obstacles with confidence—making it ideal for residential, roadside, and confined utility applications.

Maximize Versatility with Quick Attachment Changes
Compact excavator using a mulching head to cut down and clear small trees and brush in a grassy field, with debris falling and dense greenery in the foreground

Standard auxiliary hydraulics and quick‑coupler capability enable fast switching between buckets, augers, and hammers, helping crews stay productive and adapt quickly as jobsite needs change.

Description: 50 P-Tier
Engine
ManufacturerYanmar
Displacement134 cu in.
Displacement2.19 L
Net power2400 rpm
Net power at net power rpm (ISO 9249)35.9 hp
Net power at net power rpm (ISO 9249)26.8 kW
Powertrain
Maximum travel speed high/fast2.6 mph
Swing speed9 rpm
Hydraulics
Main pump maximum rated flow31.7 gpm
Undercarriage
Standard track width16 in.
Refill Capacities
Fuel tank18.5 gal.
Hydraulic tank14.8 gal.
Operating weight with standard arm
Operating weight10847 lb.
Operating dimensions with standard arm
Maximum digging reach19, 7 ft, in.
Maximum digging depth11, 7 ft, in.
Maximum dumping height13, 4 ft, in.
Transport height8, 4 ft, in.
Transport length17, 11 ft, in.
