John Deere Product Details

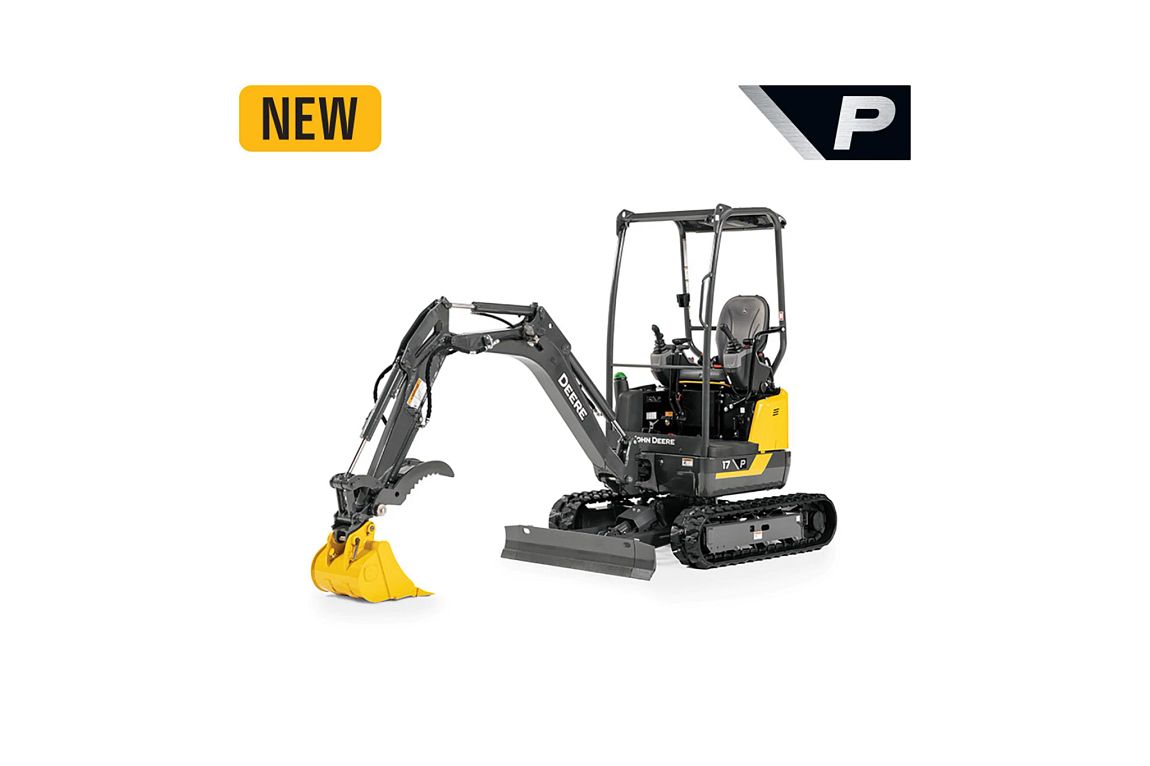

17 P-Tier
Access the Tightest Jobsite Spaces
A variable‑width undercarriage and compact frame allow the 17 P‑Tier to squeeze through narrow pathways and confined job areas, then expand for stability when it’s time to dig.
Get Reliable Performance in a Small Package
With about 14.5 hp and a balanced digging profile, this 1.7‑metric ton machine provides the capability needed for landscaping, trenching, and light utility work.
Stay Flexible with Attachment Capability
Factory‑installed auxiliary hydraulics and multiple coupler options make it easy to run a range of attachments and switch tools quickly to match the job.
Description: 17 P-Tier
Engine
| Manufacturer | Yanmar |
| Displacement | 77.3 cu in. |
| Displacement | 1.27 L |
| Net power | 2200 rpm |
| Net power at net power rpm (ISO 9249) | 18.52 hp |
| Net power at net power rpm (ISO 9249) | 13.81 kW |
Powertrain
| Maximum travel speed high/fast | 2.8 mph |
| Swing speed | 9.5 rpm |
Hydraulics
| Main pump maximum rated flow | 10.5 gpm |
Refill Capacities
| Fuel tank | 5.9 gal. |
| Hydraulic tank | 2.9 gal. |
Operating weight with standard arm
| Operating weight with canopy and rubber tracks | 3920 lb. |
Operating weight with long arm
| Operating weight with canopy and rubber tracks | 4043 lb. |
| Additional counterweight | 111.8 lb. |
Operating dimensions with standard arm
| Maximum digging depth | 7, 10 ft, in. |
| Maximum dumping height | 7,9 ft, in. |
| Transport height | 7, 9 ft, in. |
