Model | Max Auger Bit Diameter | Min Hydraulic Flow | Max Hydraulic Flow |
PA15B Planetary Drive Auger | 24 in. (610 mm) | 6 gpm (23 L/min.) | 17 gpm (64 L/min.) |

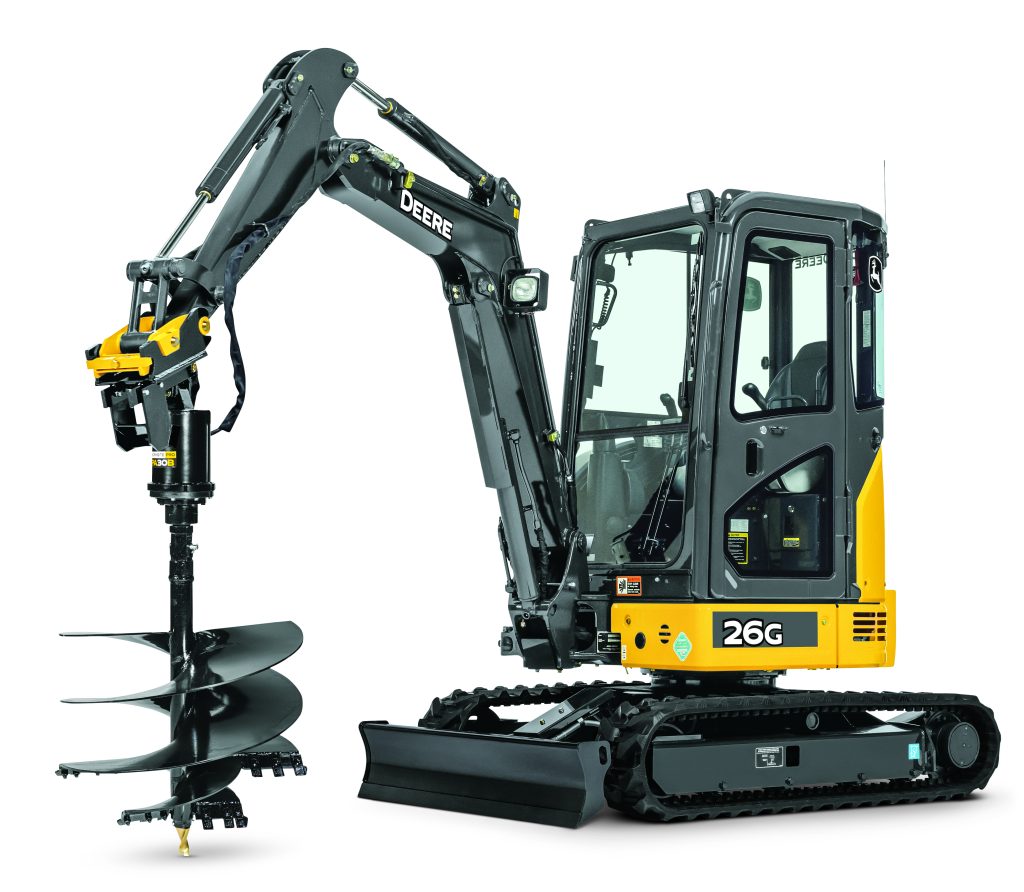

PA30B Planetary Drive Auger  | 36 in. (914 mm) | 14 gpm (53 L/min.) | 30 gpm (114 L/min.) |
PA40 Planetary Drive Auger | 36 in. (914 mm) | 28 gpm (106 L/min.) | 42 gpm (159 L/min.) |
Â

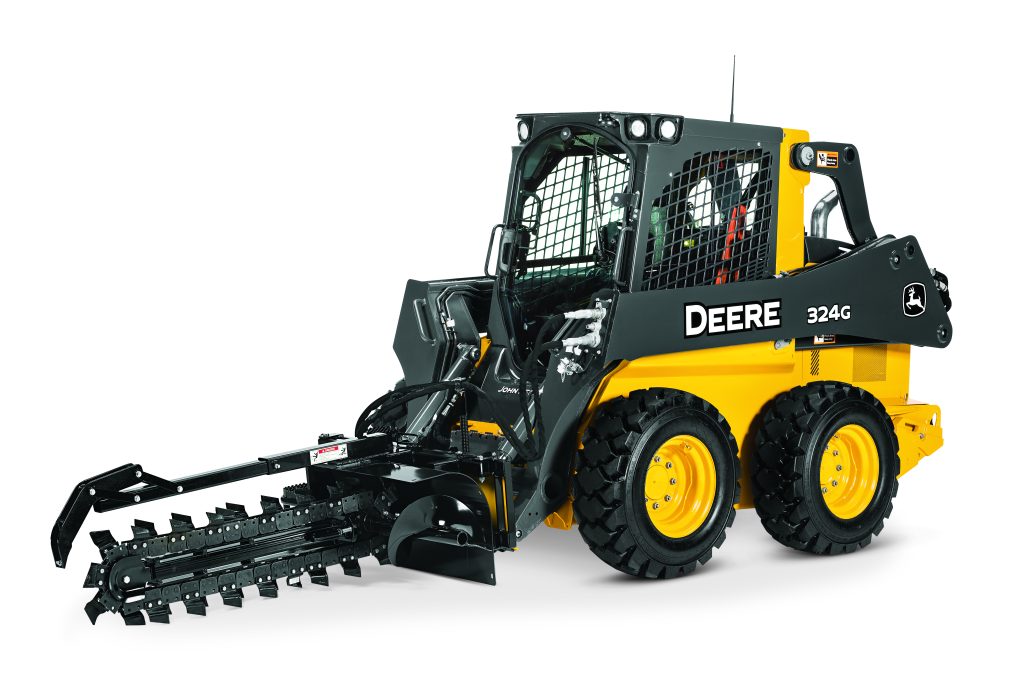

Our trenchers feature manual side shift to allow trenching close to structures. Built-in skid shoe and indicators assist in maintaining digging control. Spring-loaded boom reduces stock to the hydraulic motor, machine and operator. These trenchers are optimized to work with Deere skid steer loaders and compact track loaders. They are also compatible with many competitive models.
Model | Boom Size | Hydraulic Oil Flow | Overall Length | Weight |
TC36 Trencher | 915 mm (36 in.) | 53–83 L/min. (14–22 gpm) | 1855 mm (73 in.) | 510 kg (1,130 lb.) |
TC48 Trencher | 1220 mm (48 in.) | 53–83 L/min. (14–22 gpm) | 2185 mm (86 in.) | 540 kg (1,180 lb.) |
TR36B Trencher | 915 mm (36 in.) | 61-167 L/min. (16-44 gpm) | 1855 mm (73 in.) | 510 kg (1,130 lb.) |
TR48BÂ Trencher | 1220 mm (48 in.) | 61-167 L/min. (16-44 gpm) | 2185 mm (86 in.) | 540 kg (1,180 lb.) |
TR60BÂ Trencher | 1525 mm (60 in.) | 102-167 L/min. (27-44 gpm) | 2390 mm (94 in.) | 610 kg (1,335 lb.) |
